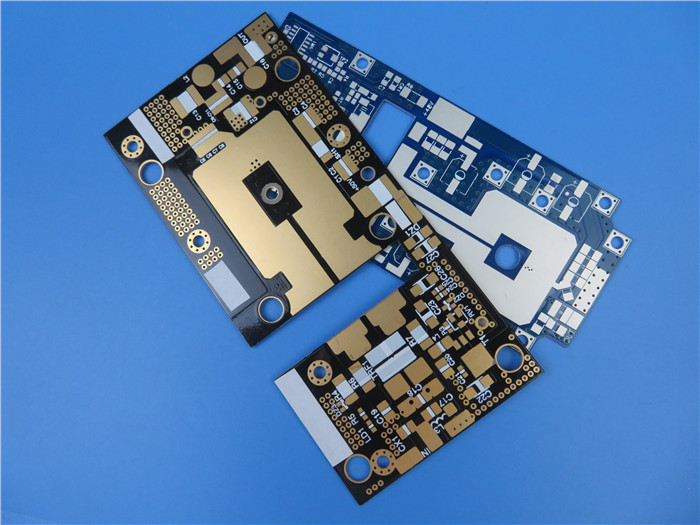

Introducing the Taconic ORCER Family PCB, a cutting-edge solution designed for high-performance applications. Featuring Taconic's advanced PTFE Ceramic woven glass reinforcement material, this PCB offers exceptional electrical properties, reliability, and cost-effectiveness. With its impressive characteristics and construction details, the Taconic ORCER Family PCB is poised to meet the demanding requirements of various industries.

The Taconic ORCER Family PCB boasts a dielectric constant of 3.5 at 1.9GHz and a low dissipation factor of 0.0018 at the same frequency, ensuring excellent electrical performance and minimal signal loss. With a dielectric breakdown of 41 kV, this PCB exhibits exceptional insulation capabilities, enhancing its reliability and safety.

The 2-layer rigid PCB stackup consists of a 70 μm copper layer on both sides, sandwiching the RF-35 Core with a thickness of 60mil (1.524 mm). The bonding ply is made of FastRise 28 prepreg, providing excellent adhesion and stability. The finished board thickness is 3.3mm, offering a robust and durable platform for electronic components.

With board dimensions of 228mm x 189mm (+/- 0.15mm), the Taconic ORCER Family PCB provides ample space for various electronic components and connections. It features a minimum trace/spacings of 4/4 mils, enabling intricate designs and high-density circuits. The minimum hole size of 0.5mm ensures reliable and secure mounting of components. The via plating thickness of 25 μm enhances the conductivity and durability of the PCB.

The Taconic ORCER Family PCB undergoes a 100% electrical test prior to shipment, ensuring its performance and reliability. It adheres to the IPC-Class-2 quality standard, guaranteeing high-quality manufacturing and consistent functionality.

This PCB offers numerous benefits, including low cost, excellent peel strength, exceptionally low dissipation factor, low moisture absorption, and enhanced surface smoothness. Its cost-effectiveness makes it an attractive choice for high-volume production while maintaining superior performance.

The Taconic ORCER Family PCB finds its applications in power amplifiers, filters, couplers, and passive components. Its exceptional electrical properties and reliability make it a preferred choice for demanding applications in industries such as telecommunications, automotive, and aerospace.

For any technical inquiries or further information about the Taconic ORCER Family PCB, please contact Ivy at sales10@bichengpcb.com. The Taconic ORCER Family PCB is available worldwide, providing global access to this high-performance and cost-effective PCB solution.

RF-35 PCB: A High-Performance Solution for Demanding Applications

Introduction:
In the realm of high-frequency electronics, the RF-35 PCB stands out as a reliable and versatile solution. With its exceptional properties and robust performance, the RF-35 PCB offers engineers and designers a powerful platform for a wide range of demanding applications. Let's delve into the key features and capabilities of the RF-35 PCB, as outlined in its data sheet.

Dielectric Constant and Dissipation Factor:
The RF-35 PCB boasts a dielectric constant of 3.5 at 1.9 GHz, making it ideal for applications that require controlled impedance and efficient signal transmission. Additionally, its impressively low dissipation factor of 0.0018 at the same frequency ensures minimal signal loss and improved system efficiency.

Moisture Absorption and Peel Strength:
With a moisture absorption rate of only 0.02% at a thickness of 0.060 inches, the RF-35 PCB exhibits excellent resistance to moisture-related issues. This low moisture absorption contributes to consistent performance and longevity, even in high humidity or moisture-prone environments. Furthermore, the RF-35 PCB demonstrates outstanding peel strength, exceeding 8.0 lbs./linear inch (or >1.5 N/mm) for 1/2 oz. copper and surpassing 10.0 lbs./linear inch (or >1.8 N/mm) for 1 oz. copper. This robust adhesion ensures secure component attachment and minimizes the risk of delamination, enhancing the overall reliability of the PCB assembly.

Dielectric Breakdown and Electrical Properties:
The RF-35 PCB exhibits a high dielectric breakdown strength of 41 kV, allowing it to withstand high voltages without electrical breakdown or insulation failure. In addition, the material showcases excellent volume resistivity at 1.26 x 10^9 Mohm/cm and surface resistivity at 1.46 x 10^8 Mohm, indicating its superior electrical insulation properties and reliability.

Mechanical Strength and Thermal Conductivity:
Mechanically, the RF-35 PCB demonstrates remarkable flexural strength, with values exceeding 22,000 psi (or >152 N/mm^2) in the lengthwise direction and surpassing 18,000 psi (or >124 N/mm^2) in the crosswise direction. This strength ensures the PCB's ability to withstand mechanical stress and offers long-term durability. Moreover, the RF-35 PCB exhibits a thermal conductivity value of 0.24 W/m/K, facilitating efficient heat dissipation and promoting thermal management in high-power applications.

Dimensional Stability and CTE:
The RF-35 PCB showcases excellent dimensional stability, with a lengthwise dimensional change of 0.00004 in/in (or 0.00004 mm/mm) and a crosswise dimensional change of -0.0001 in/in (or -0.0001 mm/mm). This stability helps to mitigate issues such as warping or delamination caused by temperature variations during operation. Additionally, the RF-35 PCB demonstrates a controlled coefficient of thermal expansion (CTE) of 19-24 ppm/°C in the x-y direction and 64 ppm/°C in the z direction, ensuring reliable performance across a wide temperature range.

Flammability and Hardness:
Safety is of paramount importance, and the RF-35 PCB meets stringent flammability standards, achieving UL-94 V-0 rating. This indicates that the material exhibits excellent flame retardancy properties. Additionally, the Rockwell M Scale hardness of 34 ensures the PCB's resistance to surface scratches and damage during handling and assembly processes.

Conclusion:
The RF-35 PCB, with its exceptional properties and outstanding performance, emerges as a high-performance solution for demanding applications in the field of high-frequency electronics. Its remarkable dielectric properties, moisture resistance, peel strength, electrical insulation, mechanical strength, thermal conductivity, dimensional stability, and flammability rating make it an ideal choice for a wide range of applications where reliability, signal integrity, and performance are paramount.
