Brief Introduction

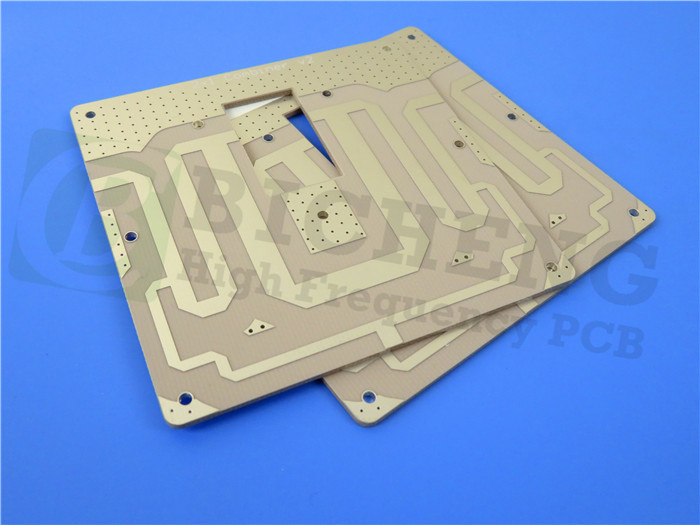

The stackup of the this PCB consists of two copper layers, each with a thickness of 35 μm. The substrate material used is RO3206, which has a thickness of 0.635 mm (25mil). This is a type of 2-layer rigid circuit board.

The board dimensions are specified as 76.88mm x 72.64mm, with a tolerance of +/- 0.15mm. The minimum trace/space is set at 9/10 mils, and the minimum hole size is 0.35mm. It is also mentioned that there are no blind vias in this design.

Other essential details include the finished board thickness of 0.8mm, the outer layer's copper weight of 1oz (1.4 mils), and the via plating thickness of 20 μm. The surface finish chosen for the PCB is Immersion Silver, which provides a protective coating and ensures good solderability.

Regarding the PCB features, there is top silkscreen in white, but no bottom silkscreen. Additionally, both top and bottom solder masks are not present in this design.

To ensure quality and reliability, a 100% electrical test is conducted before shipment to verify the functionality and performance of the PCB.

The type of artwork supplied for manufacturing the PCB is Gerber RS-274-X, which is a standard format widely used in the industry. The accepted standard for quality and workmanship is IPC-Class-2, ensuring that the PCB meets the required industry standards.

Lastly, the availability of the PCB is worldwide.
