    Rogers IsoClad 917 Non Woven Fiberglass / PTFE High Speed PCB With Low Dielectric Constant

    Ask Lasest Price
    Brand Name : Bicheng
    Model Number : BIC-206.V1.0
    Certification : UL, ISO9001, IATF16949
    Price : USD9.99-99.99
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 8-9 working days
    • Product Details
    • Company Profile

    Rogers IsoClad 917 Non Woven Fiberglass / PTFE High Speed PCB With Low Dielectric Constant


    High Frequency PCB Built on Rogers IsoClad 917 non-woven fiberglass/PTFE Materials

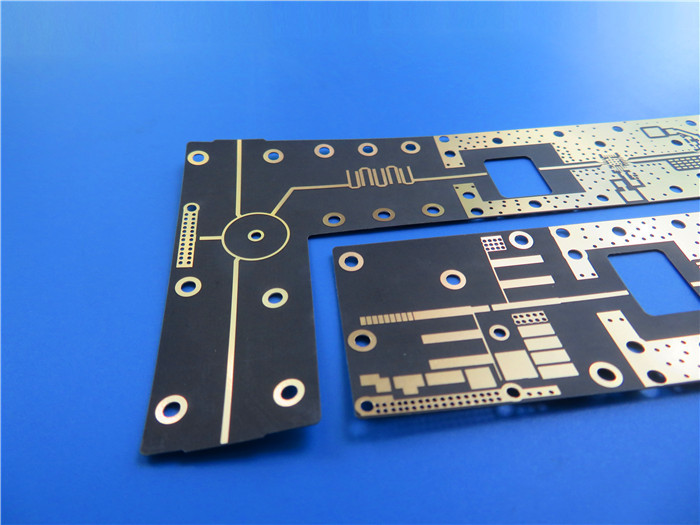

    (Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


    Rogers IsoClad 917 laminates are a type of non-woven fiberglass/PTFE composite material. By using a low ratio of fiberglass/PTFE, they achieve the lowest 2.17 or 2.20 dielectric constant and a 0.0013 dissipation factor. The longer random fibers and proprietary process of IsoClad 917 provide greater dimensional stability and dielectric constant uniformity than competitors in similar classes. As a non-woven fiberglass reinforcement, IsoClad 917 is less rigid than woven fiberglass, making it ideal for applications where the final PCB may be bent in shape, such as conformal or wrap-around antennas.


    The features of Rogers IsoClad 917 laminates include a low dielectric constant (Dk) of 2.17 or 2.20, a low dissipation factor of 0.0013 at 10GHz, extremely low loss, low moisture absorption, and high isotropic properties in X, Y, and Z directions.


    Typical applications for IsoClad 917 laminates include conformal antennas, stripline and microstrip circuits, guidance systems, and radar systems.


    PCB Specifications

    PCB SIZE126mm x 95mm=1 piece
    BOARD TYPEHigh Frequency PCB
    Number of Layers2 layers
    Surface Mount ComponentsYES
    Through Hole ComponentsN/A
    LAYER STACKUPcopper ------- 17um(0.5 oz)+plate top layer
    IsoClad 917 0.508mm
    copper ------- 17um(0.5 oz)+plate bot layer
    TECHNOLOGY
    Minimum Trace and Space:4 mil / 4 mil
    Minimum / Maximum Holes:0.2 mm / 1.2 mm
    Number of Different Holes:8
    Number of Drill Holes:251
    Number of Milled Slots:3
    Number of Internal Cutouts:3
    Impedance Control:no
    Number of Gold finger:0
    BOARD MATERIAL
    Glass Epoxy:IsoClad 917 0.508mm
    Final foil external:1.0 oz
    Final foil internal:1.0 oz
    Final height of PCB:0.6 mm ±0.1
    PLATING AND COATING
    Surface FinishImmersion Gold, 31.6%
    Solder Mask Apply To:Both sides
    Solder Mask Color:Green
    Solder Mask Type:Glossy
    CONTOUR/CUTTINGRouting
    MARKING
    Side of Component LegendTop side
    Colour of Component LegendWhite
    Manufacturer Name or Logo:Kuangshung
    VIAPlated through hole(PTH), minimum size 0.2mm. via filled and tented.
    FLAMIBILITY RATING94V-0
    DIMENSION TOLERANCE
    Outline dimension:0.0059"
    Board plating:0.0029"
    Drill tolerance:0.002"
    TEST100% Electrical Test prior shipment
    TYPE OF ARTWORK TO BE SUPPLIEDemail file, Gerber RS-274-X, PCBDOC etc
    SERVICE AREAWorldwide, Globally.

    Rogers IsoClad 917 Non Woven Fiberglass / PTFE High Speed PCB With Low Dielectric Constant


    Our Advantages

    Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 19 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.


    We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.


    Our PCB Capability (2022)

    ParameterValue
     Layer Counts 1-32
     Substrate MaterialsRO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917; Nelco N4000, N9350, N9240; SCGA-500 GF220, SCGA-500 GF255, SCGA-500 GF265, SCGA-500 GF300; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
     Maximum Size Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
     Board Outline Tolerance ±0.0059" (0.15mm)
     PCB Thickness0.0157" - 0.3937" (0.40mm--10.00mm)
    Thickness Tolerance(T≥0.8mm) ±8%
    Thickness Tolerance(t<0.8mm) ±10%
     Insulation Layer Thickness0.00295" - 0.1969" (0.075mm--5.00mm)
     Minimum Track0.003" (0.075mm)
     Minimum Space 0.003" (0.075mm)
     Outer Copper Thickness 35µm--350µm (1oz-10oz)
     Inner Copper Thickness 17µm--350µm (0.5oz - 10oz)
     Drill Hole(Mechanical)0.0079" - 0.25" (0.2mm--6.35mm)
     Finished Hole(Mechanical)0.0039"-0.248" (0.10mm--6.30mm)
    DiameterTolerance(Mechanical)0.00295" (0.075mm)
     Registration (Mechanical)0.00197" (0.05mm)
     Aspect Ratio 12:1
     Solder Mask Type LPI
     Min Soldermask Bridge0.00315" (0.08mm)
     Min Soldermask Clearance0.00197" (0.05mm)
     Plug via Diameter0.0098" - 0.0236" (0.25mm--0.60mm)
    Impedance Control Tolerance ±10%
     Surface FinishHASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.
