    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled

    Ask Lasest Price
    Brand Name : Bicheng
    Model Number : BIC-509.V1.0
    Certification : UL, ISO9001, IATF16949
    Price : USD9.99-99.99
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 8-9 working days
    • Product Details
    • Company Profile

    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled


    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled

    (Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


    Brief Introduction

    This is a type of low loss high performance multi-layer PCB built on TUC’s TU-883 core with 20 copper layers (20-layer PCB). It’s also a type of HDI circuit boards (N+1+N) with 0.1mm laser drill. This is also a type of impedance controlled PCB, 90 Ohms and 50 Ohms are controlled on each signal layers with 10% tolerance. The copper foils are 1 oz and half oz used alternately between layers. The whole PCB is 3.0mm thick, with immersion gold on pads, green solder mask and white silkscreen.


    Applications

    Radio frequency

    Backplane, High performance computing

    Line cards, Storage

    Servers, Telecom, Base station, Office Routers


    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled


    Detailed Specifications

    ItemDescriptionActualResult
    1. LaminateMaterial TypeTU-883ACC
    Tg170℃ACC
    SupplierTUCACC
    Thickness2.8-3.1mmACC
    2.Plating thicknessHole Wall26.51µmACC
    Outer copper41.09µmACC
    Inner Copper15µm / 31µmACC
    3.Solder maskMaterial TypeTAIYO/ PSR-2000GT600DACC
    ColorGreenACC
    Rigidity (Pencil Test)5HACC
    S/M Thickness20.11µmACC
    LocationBoth SidesACC
    4. Component MarkMaterial TypeIJR-4000 MW300ACC
    ColorWhiteACC
    LocationC/S, S/SACC
    5. Peelable Solder MaskMaterial Type/
    Thickness/
    Location/
    6. IdentificationUL MarkYESACC
    Date Code2921ACC
    Mark LocationSolder SideACC
    7. Surface FinishMethodImmersion GoldACC
    Nickel Thickness4.06µmACC
    Gold Thickness0.056µmACC
    8. NormativenessRoHSDirective 2015/863/EUACC
    REACHDirective 1907 /2006ACC
    9.Annular RingMin. Line Width (mil)4.8milACC
    Min. Spacing (mil)5.2milACC
    10.V-grooveAngle/
    Residual thickness/
    11. BevelingAngle/
    Height/
    12. FunctionElectrical Test100% PASSACC
    13. AppearanceIPC Class LevelIPC-A-600J &6012D Class 2ACC
    Visual InspectionIPC-A-600J &6012D Class 2ACC
    Warp and Twist0.21%ACC
    14. Reliability TestTape TestNo PeelingACC
    Solvent TestNo PeelingACC
    Solderability Test265 ±5℃ACC
    Thermal Stress Test288 ±5℃ACC
    Ionic Contamination Test0.56µg/c㎡ACC

    Stackup & Impedance Controlled

    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled

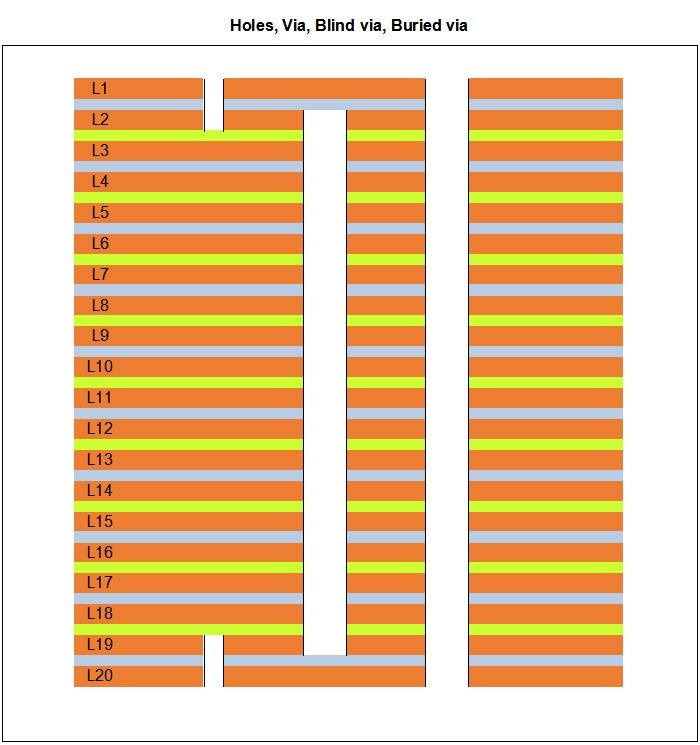

    HDI vias

    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled


    TU-883 Multi-layer Printed Circuit Board (PCB) HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled
