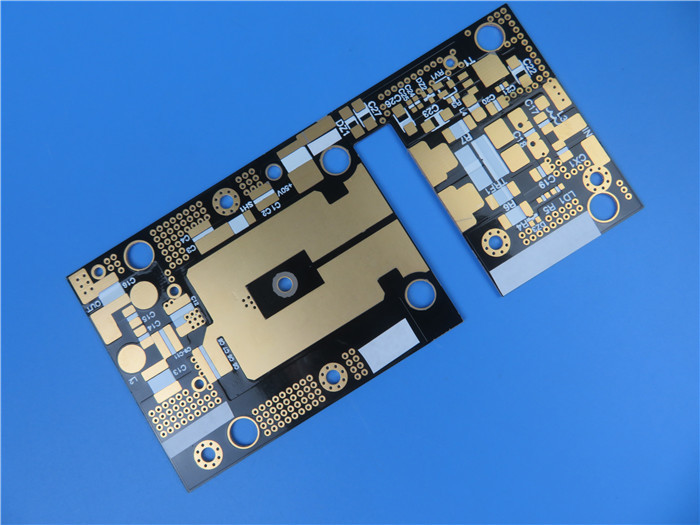

RF-35 RF High Tg PCB 30mil Double Sided High Frequency Printed Circuit Board Coating Immersion Gold and Black Solder Mask
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
This is a type of ORCER (Organic Ceramic) RF-35 high frequency PCB. It’s built on 30mil core with 2oz copper on both top and bottom layer(double sided board). It’s 120mm long by 60mm wide with immersion gold on pads. Bottom layer is open to air with gold surface as we’ve seen.
Taconic RF PCB
Besides RF-35, there’re other types of Taconic “RF” PCB available in our house. Such as RF-10(10mil,20mil, 25mil, 60mil and 125mil), RF-30A(10mil, 20mil, 30mil,40mil and 60mil), RF-35TC(10mil, 20mil, 30mil), RF-60TC(10mil, 20mil, 30mil, 60mil and 125mil), RF-35A2 (5mil, 10mil, 20mil, 30mil and 60mil) etc. DK ranges 2.97 to 10.2 etc.
Other PCB Available Material
FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)
Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.
Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.
Rogers TMM4, TMM10, Kappa 438 etc.
PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)
Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.
AD450, AD600, TC350 etc.
Nelco N4000, N9350, N9240
Metal core PCB, 1W/MK-3W/MK material
Flexible PCB
CAPABILITY
2500-3000 types each month.
SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
Applications:
Power Amplifiers
Filters and Couplers
Passive Components
PCB Specifications
| PCB SIZE | 120 x 60mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RF-35 0.762mm | |
| copper ------- 35um(1 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.0 mil / 7.0 mil |
| Minimum / Maximum Holes: | 0.5 mm / 0.5 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 8 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RF-35 0.762mm |
| Final foil external: | 2.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold, 75% |
| Solder Mask Apply To: | Top Layer |
| Solder Mask Color: | Black |
| Solder Mask Type: | Kuangshun |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Top Layer |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.5mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
|
|
