30mil RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver on Pads

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Brief Introduction

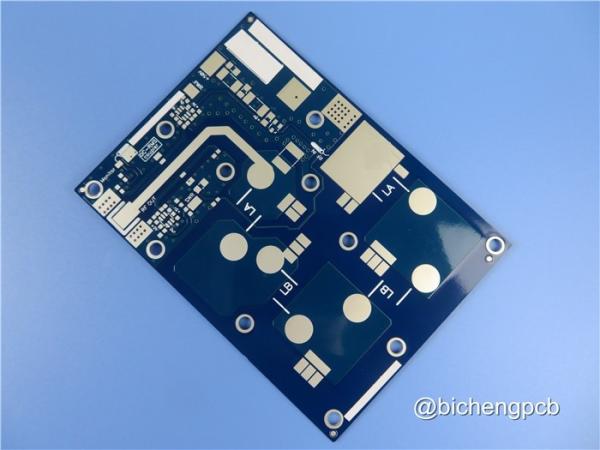

This type of immersion silver RF PCB is made on one of Taconic’s ORCER family material: RF-45. The circuit board is dual layers with finished 1oz copper. Solder mask and silkscreen overlay are on top layer only. The bottom layer is fully exposed covered with immersion silver as the shield function. It’s 0.8mm thick and 50 boards are vacuum packed for shipment.

PCB Specifications

Other Available RF PCB Material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35, RF-60A, RF-45, TRF-45 etc.

AD450, AD600, AD1000, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G

Our PCB Services

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service

Service Area:
Rogers serves a vast service area, including North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, and the Middle East. This extensive coverage ensures that customers from different regions can access and benefit from Rogers' products and services.

Typical Applications:
RF-45 laminates find typical applications in various industries. Some of these applications include satellite radio, where the laminates can be used for components or circuitry in satellite radio devices. Additionally, RF-45 laminates are suitable for RFID (Radio Frequency Identification) tags, which are used for tracking and identification purposes across different sectors. These laminates can also be utilized in satellite radio antennas, RFID antennas, and GPS antennas, enabling reliable and efficient signal transmission and reception in these systems.

Overall, Rogers RF-45 laminates offer a versatile range of capabilities, a broad service area, and they find typical applications in satellite radio, RFID tags, satellite radio antennas, RFID antennas, and GPS antennas.

Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery

We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
