We Are Your RF PCB Solution Provider! Rogers PCB, Taconic PCB, Arlon PCB, F4B PCB ISO9001, ISO14001, IATF 16949 certified
5 Years
| Ask Lasest Price | |
| Brand Name : | Bicheng |
| Model Number : | BIC-202.V1.0 |
| Certification : | UL, ISO9001, IATF16949 |
| Price : | USD9.99-99.99 |
| Payment Terms : | T/T |
| Supply Ability : | 5000PCS per month |
| Delivery Time : | 8-9 working days |

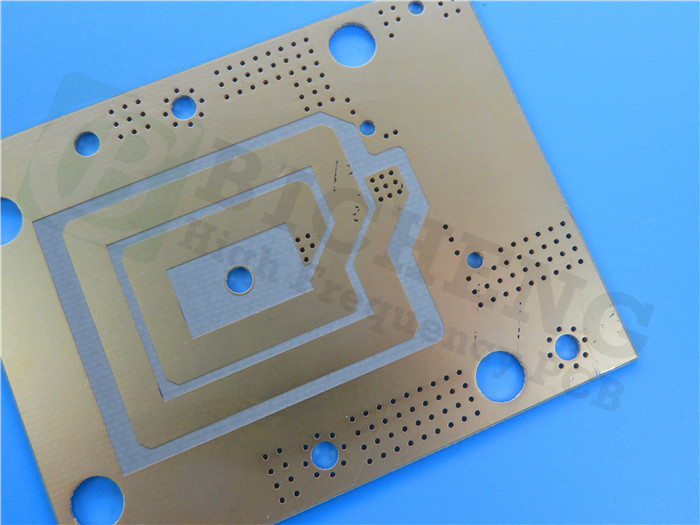

Rogers DiClad 880 High Frequency PCB Double Layer 20mil 0.508mm With Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description
This is a type of Rogers high frequency PCB built on DiClad 880 laminates, double layers with signal layer on top side, shielding layer on bottom side. It is plated with immersion gold, no solder mask or silkscreen. It’s fabricated using 20mil substrates, 0.5oz copper starting. The boards are manufactured as per IPC Class II standard. All of the boards are 100% electrical tested before shipment.
PCB Specifications
| PCB SIZE | 68 x 86mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| DiClad 0.508mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10 mil / 10 mil |
| Minimum / Maximum Holes: | 0.5 mm / 1.0 mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 12 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 2 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | DiClad880 0.508mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 88.2% |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.5mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Our Advantages
1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
2. PCB manufacturing is strictly as per required specifications;
3. Meeting your PCB needs from prototype to mass production;
4. Any Layer HDI PCBs;
5. 16000㎡ workshop; 8000 types of PCB's per month;
6. Quick CADCAM checking and free PCB quotation;
7. Eligible products rate of first production: >99% Customer complaint rate: <1%
8. More than 19+ years of high frequency PCB experience;
9. IPC Class 2 / IPC Class 3;
10. Prototype PCB capability and Volume Production capability;
FAQ's
Do We Deliver Worldwide?
All PCBs purchasable through Bicheng Ltd can be dispatched worldwide to any non embargoed countries. We’ll choose the suitable shipping carriers for you among DHL, FedEx, TNT, UPS, EMS and Aramex
Is the High frequency Materials In Stock?
We keep most of the high frequency material in stock with prototype quantity,such as Rogers material with 3000 series, 4000 series, 5000 series, 6000 series etc, Taconic material with RF series, TLX series, TLY series etc, Wangling material F4B with DK2.2, DK2.65 etc. Since the high frequency material has so much variety, you can consult our sales persons before ordering.
Can I Collect My Order?
It’s completely no problem to pick up ordering of boards or collection of PCBs from our premises through your account in DHL, UPS or FedEx etc.. We’ll help to prepare the necessary export documents or files for customs declare.
How Much Will It Cost For Delivery?
We have various carriers to choose. Usually, we’ll pick one with best shipping fee for you. If your order is urgent, we can help to choose the forwarder with fast timeliness.
Am I Able To Return My PCBs?
PCBs are irreversible custom-made products, it is not allowed to return the items if there’s no quality problems.
When Will My Order Arrive?
All the PCBs are dispatched the same day if they are finished fabrication before 5pm. For Asian clients, you can get it within 2-3 days, European clients in 6-7 days and American (North and South) in 6-7 days, however the carriers do not guarantee this because of the complexity of transportation.
Will I Need To Sign For My Package?
We dispatch all orders using DHL, UPS, FedEx, TNT, Aramex or EMS, so they are fully tracked and may require a signature.
How Can I Track My Order?
Once your PCB boards are dispatched, you will receive a shipping confirmation via email by our sales that includes a tracking number. You can track this number on their official websites.
What Should I Do If My Parcel Is Damaged Or Lost?
This situation is rare in our daily business. The PCB boards are packed with bubble materials inside and with KK grade carton outside to protect your PCBs. However, If your parcel is lost or damaged, you must contact us immediately so that we can contact the carrier and arrange for replacement production. Please keep any damaged items including damaged packaging for reference.
Our PCB Capability (2022)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Materials | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--350µm (1oz-10oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0079" - 0.25" (0.2mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
|
|
