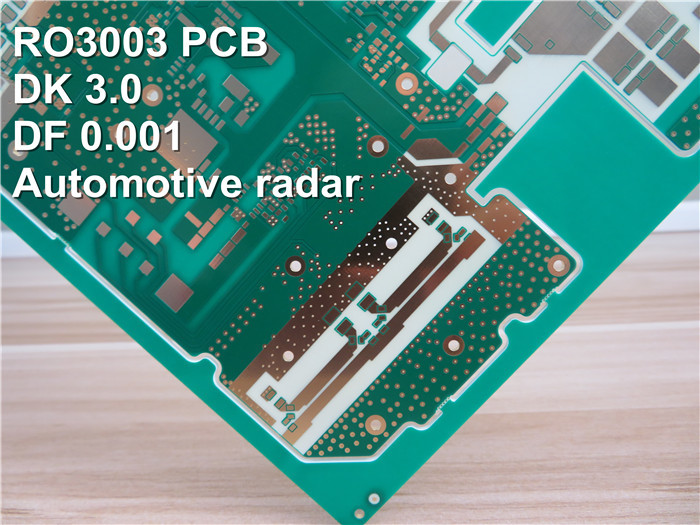

Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Rogers RO3003 high-frequency circuit materials are ceramic-filled PTFE composites specifically designed for commercial microwave and RF applications. These materials offer exceptional electrical and mechanical stability while maintaining competitive prices. The consistent mechanical properties of RO3003 allow designers to develop multi-layer board designs without encountering warpage or reliability issues.

RO3003 materials exhibit a coefficient of thermal expansion (CTE) of 17 ppm/℃ in the X and Y axes. This CTE is matched to that of copper, ensuring excellent dimensional stability. After etching and baking processes, RO3003 materials typically experience minimal etch shrinkage of less than 0.5 mils per inch, further enhancing their dimensional stability.

Furthermore, RO3003 laminates have a Z-axis CTE of 24 ppm/℃. This characteristic contributes to exceptional plated through-hole reliability, even in harsh environments, ensuring robust and reliable performance.

Rogers RO3003 high-frequency circuit materials provide exceptional electrical and mechanical stability, making them ideal for applications such as datalink on cable systems, patch antennas for wireless communications, power backplanes, and remote meter readers.

PCB Specifications

Data Sheet of Rogers 3003 (RO3003)

Company Profile

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.

Bicheng PCB is headquartered in Shenzhen, a city with great economic vitality. Based in China, we adhere to the philosophy of servicing small and medium sized companies offering variety of circuit boards to meet the demands of market.

Main Business & PCB Applications

We maintain the highest standards which support products that exhibit exceptional quality, performance and reliability. We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.The circuit boards are used in the industries of home appliances, portable and consumable electronics, medical filed, aerospace as well as telecommunications etc.
