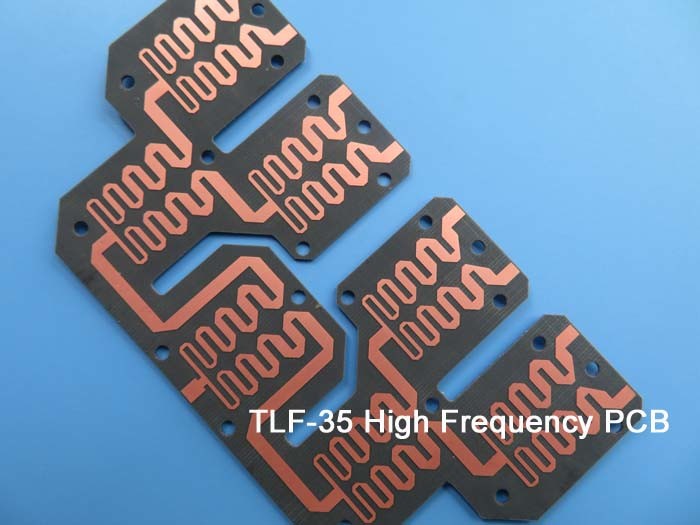

    TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish


    Taconic TLF-35 High Frequency PCB with 30mil, 60mil Thick Coating Immersion Gold, HASL, Immersion Silver and Tin

    (PCB's are custom-made products, the picture and parameters shown are just for reference)


    Hello everyone,

    Today, we talk about TLF-35 high frequency PCB.


    Taconic TLF-35 is an organic-ceramic laminates which is based on woven glass reinforcement. It is a result of both ceramic fill technology and coated PTFE fiberglass.


    TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish


    Typical Values of TLF-35

    PropertyTest MethodUnitsValueUnitsValue
    Dielectric Constant @ 1.9 GHzIPC-TM650 2.5.5.5.1 Mod3.50 ±0.053.50 ±0.05
    Dissipation Factor @ 1.9 GHzIPC-TM650 2.5.5.5.1 Mod0.00160.0016
    Dissipation Factor @ 10 GHzIPC-TM650 2.5.5.5.1 Mod0.00220.0022
    Water AbsorptionIPC-TM 650 2.6.2.1%0.03%0.03
    Peel Strength (1 oz. copper)IPC-TM 650 2.4.8Lbs./linear inch10N/mm1.8
    Volume ResistivityIPC-TM 650 2.5.17.1Mohm·cm2.0 x 109Mohm·cm2.0 x 109
    Surface ResistivityIPC-TM 650 2.5.17.1Mohm3.0 x 108Mohm3.0 x 108
    Flexural Strength LengthwiseIPC-TM 650 650 2.4.4psi13000N/mm290
    Flexural Strength CrosswiseIPC-TM 650 650 2.4.4psi13000N/mm290
    Thermal ConductivityIPC-TM 650 2.4.50W/m/K0.37W/m/K0.37
    x-y CTE (50 ~ 150)IPC-TM 650 2.4.41ppm/9-12ppm/9-12
    z CTE (50 ~ 150)IPC-TM 650 2.4.41ppm/80ppm/80
    FlammabilityUL-94V-0V-0

    We benefit from its following advantages:

    1. Improved phase intermodulation distortion (PIMD) with DK3.5

    TLF-35 is designed to obtain improved PIMD performances on size effective PCBs for antenna application. The dielectric constant of TLF-35 is 3.5 which is similar with PIMD required levels.


    2. Improved PTH quality

    It shows better PTH quality which results in more stable hole wall and insulation resistance even for the smaller drilled holes.


    3. Stable at high frequency

    TLF-35 is designed to offer superior high frequency performance.


    4. Low moisture absorption

    Its ultra-low moisture absorption rate and low dissipation factor minimize phase shift with frequency.


    5. Cost.

    Low cost realizes high volume commercial microwave and radio frequency application.


    TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish


    Typical applications are shown as follows.

    1. Antenna

    2. Power amplifiers (TD-SCDMA, WCDMAS, LTE, WLAN etc.)

    3. LNA, Repeater PA

    4. Passive RF components (Filters, Couplers etc.)


    TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish


    Our PCB Capability (TLF-35)

    PCB Capability
    PCB Material:Organic-ceramic Laminates
    Designation:TLF-35
    Dielectric constant3.50 ±0.05
    Layer count:1 Layer, 2 Layer, 4 Layer.
    Copper weight:0.5oz, 1oz, 2oz
    PCB thickness:0.8mm, 1.6mm
    PCB Size:≤400mm X 500mm
    Surface finish:Bare copper, HASL, ENIG, Immersion tin etc.


    We’re able to supply TLF-35 high frequency PCB with 1oz and 2oz copper, 0.8mm and 1.6mm thick, maximum panel size 400 X 500mm, with surface finish bare copper, HASL, ENIG, immersion tin etc.


    Bicheng specializes in providing you with prototype, small batches and mass production service.

    If you have any questions, please feel free to contact us.


    Thank you for your reading.
