Rogers RO3010 High Frequency PCB With 5mil, 10mil, 25mil and 50mil Coating Immersion Silver, Immersion Gold and Tin

(PCB's are custom-made products, the picture and parameters shown are just for reference)

Hello Everyone,

Today we’re talk about RO3010 high frequency PCBs.

RO3010 high frequency circuit laminates are ceramic-filled PTFE composites intended for using in commercial microwave and RF applications. Its obvious characteristic is that the electrical performance is exceptional and the mechanical property is stable and consistent. This allows our designer to develop multi-layer board without encountering warpage or reliability problems.

More features and applications are as follows:

1. Excellent mechanical properties versus temperature, it’s reliable stripline and multi-layer board constructions.

2. Uniform mechanical properties, it’s suitable for use with epoxy glass multi-layer board hybrid designs.

3. Low in-plane expansion coefficient matches to copper, it allows for more reliable surface mounted assemblies; ideal for applications sensitive to temperature change and exhibit excellent dimensional stability.

Our PCB Capability (RO3010)

RO3010 high frequency PCBs are available with double sided, multi-layer and hybrid construction, 0.5oz to 2oz finished copper, 0.13 mm to 1.3mm thick, maximum size 400 mm by 500mm, surface finish with bare copper, hot air leveling, immersion gold etc.

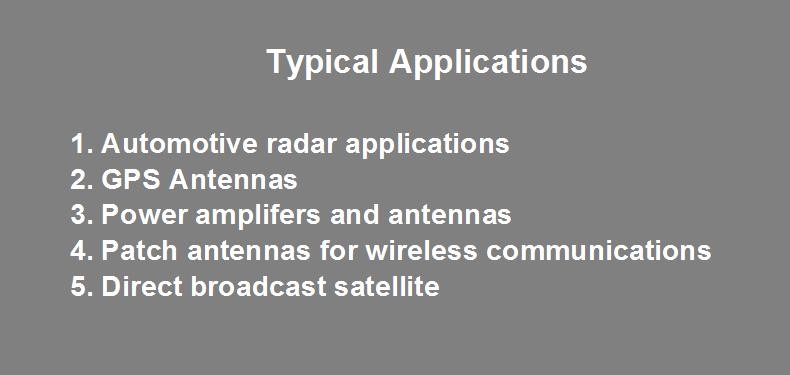

Typical applications are

1. Automotive radar applications

2. GPS Antennas

3. Power amplifiers and antennas

4. Patch antennas for wireless communications

5. Direct broadcast satellite

The basic colour of RO3010 PCB is white.

The manufacturing process of RO3010 high frequency PCB is similar to standard PTFE PCB, so it’s suitable for volume manufacturing process winning advantageous market.

Should you have any questions, please feel free to contact us.

Thank you for your reading.

Appendix: Data Sheet of RO3010
