    Immersion gold UL 94 Multi Layer PCB RO4003C 32mil And RO4450F 12mil PP

    Ask Lasest Price
    Brand Name : Bicheng
    Model Number : BIC-069.V1.0
    Certification : UL, ISO9001, IATF16949
    Price : USD9.99-99.99
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 8-9 working days
    • Product Details
    • Company Profile

    Immersion gold UL 94 Multi Layer PCB RO4003C 32mil And RO4450F 12mil PP


    4 Layer High Frequency PCB On 2 Cores of 32mil 0.813mm RO4003C and 12mil RO4450F for Ultrahigh Frequency Coupler

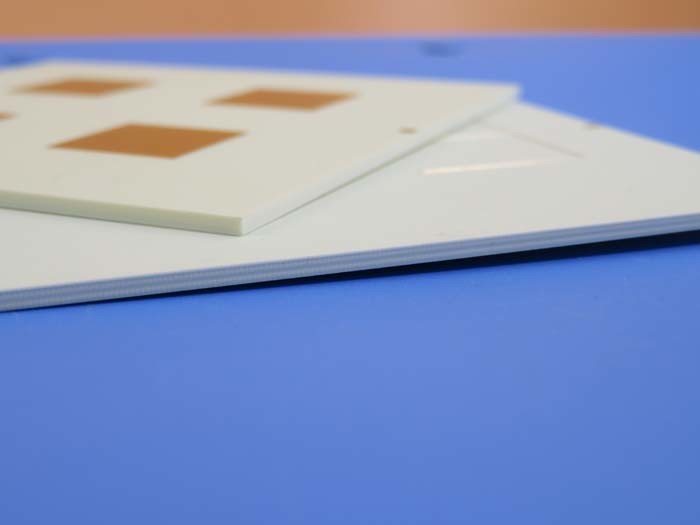

    (Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)


    Today we talk about a type of 4 layer high frequency PCB. This PCB is built on 2 sheets of 0.813mm (32mil) RO4003C cores with 1 sheet RO4450F prepreg for the application of ultrahigh frequency coupler. Following is the stack-up.


    Immersion gold UL 94 Multi Layer PCB RO4003C 32mil And RO4450F 12mil PP


    In general, multilayer Rogers high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. As is known to all, there’re 6 cores in RO4003C family, i.e. 8mil (0.203mm) to 60mil (1.524mm).


    RO4003C:
    8mil0.203mm
    12mil0.305mm
    16mil0.406mm
    20mil0.508mm
    32mil0.813mm
    60mil1.524mm

    Appendix: Properties of RO4003C

    RO4003C Typical Value
    PropertyRO4003CDirectionUnitsConditionTest Method
    Dielectric Constant,εProcess3.38±0.05Z10 GHz/23℃IPC-TM-650 2.5.5.5 Clamped Stripline
    Dielectric Constant,εDesign3.55Z8 to 40 GHzDifferential Phase Length Method
    Dissipation Factortan,δ0.0027
    0.0021
    Z10 GHz/23℃
    2.5 GHz/23℃
    IPC-TM-650 2.5.5.5
    Thermal Coefficient of ε+40Zppm/℃-50℃to 150℃IPC-TM-650 2.5.5.5
    Volume Resistivity1.7 x 1010MΩ.cmCOND AIPC-TM-650 2.5.17.1
    Surface Resistivity4.2 x 109COND AIPC-TM-650 2.5.17.1
    Electrical Strength31.2(780)ZKv/mm(v/mil)0.51mm(0.020")IPC-TM-650 2.5.6.2
    Tensile Modulus19,650(2,850)
    19,450(2,821)
    X
    Y
    MPa(ksi)RTASTM D 638
    Tensile Strength139(20.2)
    100(14.5)
    X
    Y
    MPa(ksi)RTASTM D 638
    Flexural Strength276
    (40)
    MPa
    (kpsi)
    IPC-TM-650 2.4.4
    Dimensional Stability<0.3X,Ymm/m
    (mil/inch)
    after etch+E2/150℃IPC-TM-650 2.4.39A
    Coefficient of Thermal Expansion11
    14
    46
    X
    Y
    Z
    ppm/℃-55℃to288℃IPC-TM-650 2.4.41
    Tg>280℃ TMAAIPC-TM-650 2.4.24.3
    Td425℃ TGAASTM D 3850
    Thermal Conductivity0.71W/M/oK80℃ASTM C518
    Moisture Absorption0.06%48hrs immersion 0.060"
    sample Temperature 50℃
    ASTM D 570
    Density1.79gm/cm323℃ASTM D 792
    Copper Peel Stength1.05
    (6.0)
    N/mm
    (pli)
    after solder float 1 oz.
    EDC Foil
    IPC-TM-650 2.4.8
    FlammabilityN/AUL 94
    Lead-free Process CompatibleYes

    The specifications of the board are as follows:

    Base material: RO4003C 32mil + RO4450F 12mil PP

    Layer count: 4 layers

    Type: Castellation holes (half holes) on edge

    Format: 113mm x 80mm = 1 type = 4 piece

    Surface finish: Immersion gold

    Copper weight: Outer layer 35 μm/ Inner layer 35 μm

    Solder mask / Legend: no / no

    Final PCB height: 2.1 mm

    Standard: IPC 6012 Class 2

    Packing: 20 panels are packed for shipment.

    Lead time: 10 working days

    Shelf life: 6 months


    You enjoy the features and benefits

    1) Excellent high frequency performance due to low dielectric tolerance and loss;

    2) AOI inspection;

    3) Meeting your PCB needs from prototype to mass production;

    4) 30000 square meter month capability;

    5) 8000 types of PCB's per month;

    6) More than 16 years of PCB experience;


    The Applications are

    (1) GPS antenna

    (2) WiFi amplifier

    (3) Power amplifier

    (4) RF transceiver

    (5) TV antenna

    (6) Radar data acquisition converter

    (8) Spread spectrum, Attenuator
