3 Layer High Frequency PCB Built On 60mil RO4350B and 6.6mil RO4350B with ENIG for Wireless Booster

(PCB’s are custom-made products, the picture and parameters shown are just for reference)

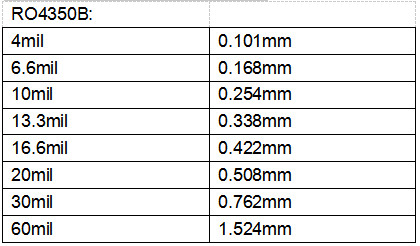

Multilayer high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. For example, a 4-layer RO4350B PCB is a compound of 2 cores of RO4350B substrates. As is known to all, there’re 8 cores in RO4350B family, i.e. 4mil (0.101mm) to 60mil (1.524mm).

So it’s very interesting that stack-up of 4 layers can be done in many different ways.

This 3-Layer high frequency PCB is built on 2 cores of RO4350B and one layer of copper is etched off, left 3 layers on.

The structure is one sheet of 60mil RO4350B plus 4mil RO4450F prepreg and combined 6.6mil RO4350B. The board is a square with 110mm x 110mm, with immersion gold finishes on pads. They’re 20 pieces packed for shipment and used for wireless booster.

Following is the actual value in engineering manufacture.

Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Reducing signal loss in high frequency application meets the development needs of communication technology;

3) Professional and experienced engineers check your production files

4) Hassle-free, one-to-one after-sales service;

5) UL, ISO14001, IAFT16949 certified factory.

Applications

Amplifier, Antenna combiner, Frequency converter, Trunk amplifier, RF module, Power splitter, Low Noise Block, 4G antenna

Parameter and data sheet

Our Quality Policy

Bicheng has developed series of management procedures and approaches to assure that PCBs are in compliance with the customers' requirements, inclusive of selection of the vendors, work in progress (WIP) inspection, outgoing delivery inspection and customer service etc.

Evaluation and Audit of Suppliers

Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers every year to guarantee the materials supplied are meeting Bicheng’s requirements. Furthermore, Bicheng continuously develop suppliers and supervise them to improve their quality and environment management basing on the systems of ISO9001 & ISO14001.

Contract Evaluation

Bicheng shall review and verify customer's requirements to make sure that we have the capability to satisfy customers' requirements including specifications, delivery and other demands prior to accepting an order.

Making, audit and control of manufacturing data.

When customers' design data and specifications are provided to our market department, Bicheng has to verify all the requirements. Then, convert the design data into manufacturing data by CAM. Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process and technologies for manufacturing department as the basis for actual fabrication. MI must be reviewed by independent engineers and QA engineers before issue.

Incoming Material Quality Control

All materials have to be inspected before warehousing. We established a series of strict inspection procedure and instruction to control the incoming materials. Furthermore, various precise inspecting instruments and apparatus guarantee the capability to judge the material good or not. We issue material with first in first out principle, and give out “alarm” for the material that will reach the shelf life to ensure the materials are used up before expiry.

Company Profile

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.

Bicheng PCB is headquartered in Shenzhen, a city with great economic vitality. Based in China, we adhere to the philosophy of servicing small and medium sized companies offering variety of circuit boards to meet the demands of market.

Main Business & PCB Applications

We maintain the highest standards which support products that exhibit exceptional quality, performance and reliability. We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.The circuit boards are used in the industries of home appliances, portable and consumable electronics, medical filed, aerospace as well as telecommunications etc.
