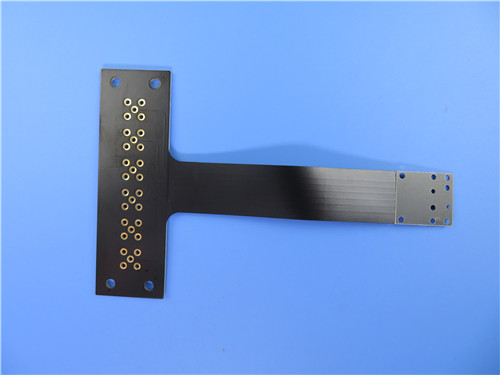

    Single Layer Flexible Printed Circuit (FPC) With 1.0mm FR-4 Stiffener and Black Solder Mask for Wireless Module

    Single Layer Flexible Printed Circuit (FPC) With 1.0mm FR-4 Stiffener and Black Solder Mask for Wireless Module

    (Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)


    General description

    This is a type of single sided flexible printed circuit (FPC) built on polyimide for the application of Wireless Module.


    Basic specifications

    Base material: Polyimide 25μm + 1.0mm stiffener of FR-4

    Layer count: 1 layer

    Type: Individual FPC

    Format: 145mm x 78mm = 1 type = 1 piece

    Surface finish: Immersion gold

    Copper weight: Outer layer 35 μm/ Inner layer 0 μm

    Solder mask / Legend: Black coverlay / white

    Final PCB height: 1.20 mm (inclusive of stiffener)

    Standard: IPC 6012 Class 2

    Packing: 100 pieces are packed for shipment.

    Lead time: 10 working days

    Shelf life: 6 months


    Single Layer Flexible Printed Circuit (FPC) With 1.0mm FR-4 Stiffener and Black Solder Mask for Wireless Module


    Features and benefits

    Consistency of assembly;

    Increased reliability;

    Controllability of electrical parameter design;

    Good oxidation resistance and good heat dissipation;

    Impedance control test and solder-ability test;

    Wide range of PCB supplying;

    Delivery on time: >98%

    Customer complaint rate: <1%


    Applications

    General purpose LED soft light strip, flex keyboard for mobile phone keys medical equipment controller, Toy lamp strip, industrial control audio equipment, LCD TV soft board, Digital camera soft board


    Specifications of Standard 2 Layer FCCL

    SpecificationsThickness (µm)Copper TypeApplications
    Polyimide FilmCopper Foil
    SF202 0506DR12.56RAFine-line
    SF20200509DR129RA
    SF202 0509DT129RTF
    SF202 0812DR2012RASide switch
    SF202 1012DR2512RA
    SF202 0545DT12.545RTFWireless Charge
    SF202 1045DT2545RTF
    SF202 0550DT12.550RTF
    SF202 1050DT2550RTF
    SF202 0570DT12.570RTF
    SF202 1070DT2570RTF
    SF202 101850DT2518, 50RTF
    SF202 101870DT2518,70RTF

    Brief Introduction of FPC

    Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.


    FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.


    Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.


    The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.
