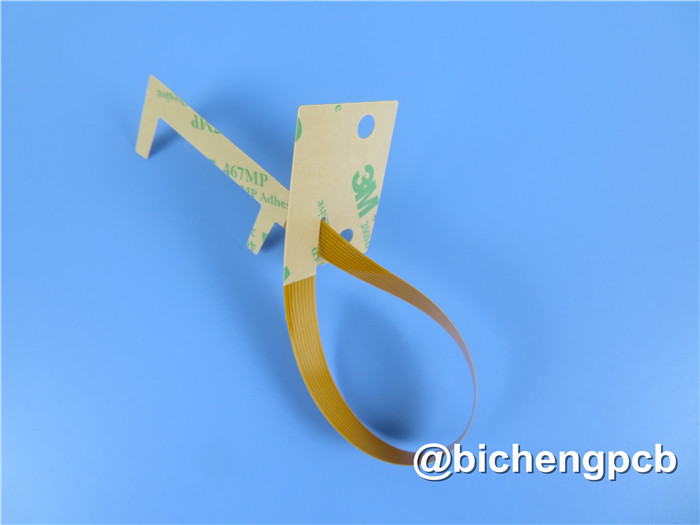

Single Sided Flexible PCBs FPC On Polyimide Substrate With 3M Tape Tesa Tape
(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)
General description

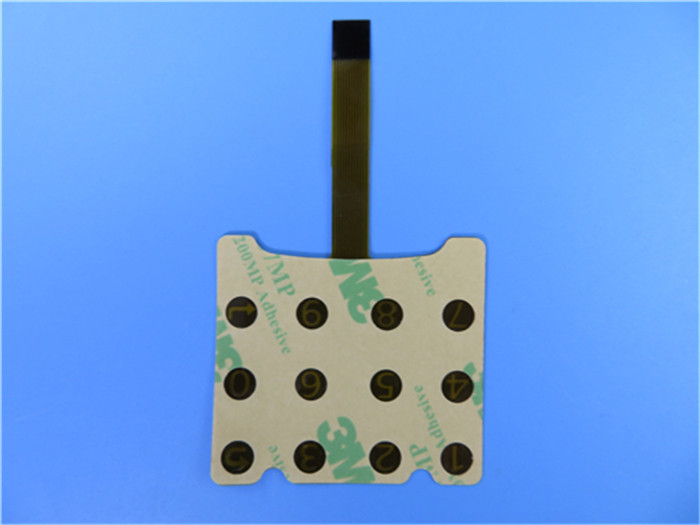

This type of flexible printed circuit is for the application of calculator keypad. It’s a single layer FPC at 0.15mm thick. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M Tape is applied on the back side.
Parameter and data sheet
| Size of Flexible PCB | 30.53 X 59.37mm |
| Number of Layers | 1 |
| Board Type | Flexible PCB |
| Board Thickness | 0.150mm |
| Board Material | Polyimide 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60℃ |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | Polyimide |
| Stiffener Thickness | 0.2mm |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90℃ No peeling after Min. 3 times test |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| Thermal Shock Test | Pass, -25℃±125℃, 1000 cycles. |
| Thermal Stress | Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Features and benefits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
The end can be whole soldered
Low cost
Continuity of processing
Professional and experienced engineers
More than 18 years of experience
Applications
Touch screen, LED display soft board, Tablet antenna soft board
Adhesives
Base laminates for rigid printed circuit boards are copper foils laminated together with the base materials, the adhesive coming from the prepreg material during lamination. Contrary to this is the flexible circuit where the lamination of the copper foil to the film material is achieved by means of an adhesive system.
It is, however, necessary to distinguish between two main systems of adhesive, namely thermoplastic and thermoset adhesives. The choice is dictated partly by the processing, and partly by the application of the finished flexible circuit.
Sheets Adhesives / 3M Tape / Tesa Tape
A sheet adhesive, frequently in the form of a low-flow acrylic, is an adhesive "cast" on a polypropylene paper from which the adhesive easily can be removed. The application of sheet adhesives is frequently used for bonding flexible circuits into multilayer flexible circuits, or for attaching stiffeners to flexible circuits.
