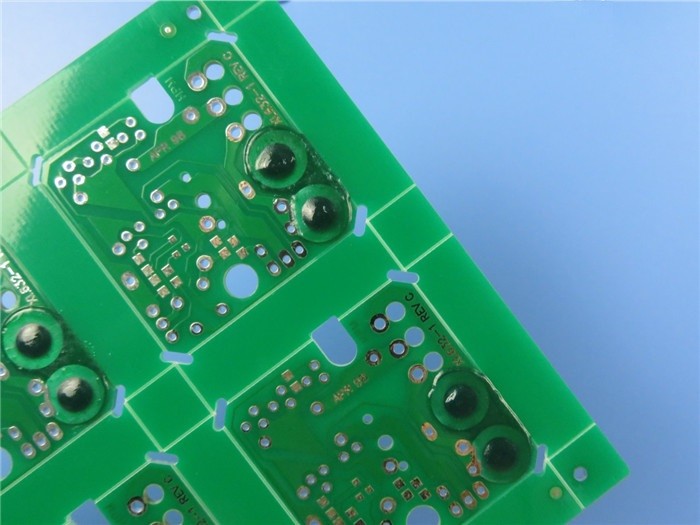

PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL.
(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)
1.1 General description
This is a type of 2 layers PCB board built on FR-4 Tg170 substrate for the application of 8 Port Switch. It's 1.6 mm thick with white silkscreen on green solder mask and HASL (pb free) on pads. The big pads on top layer are protected by Peelable masks. The base material is from ITEQ supplying 8 up boards per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.
1.2 Features and benefits
1. High Tg material suit for lead free assemblies with a maximum reflow temperature of 260℃;
2. HASL shows excellent wetting during component soldering and it can avoid copper corrosion;
3. Reliability test, insulation resistance test and ionic contamination test;
4. Powerful PCB capabilities support your research and development, sales and marketing;
5. Quick Lead time: 3-5 days
6. Customer complaint rate: <1%
7. Eligible products rate of first production: >99%;
8. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory.
1.3 PCB Specifications
| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Size | 146 x 96mm=8UP |
| Board Thickness | 1.6 mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 170℃ |
| PTH Cu thickness | ≥20 um |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D, Peelable Mask |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 14 um |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| Mininum Trace (mil) | 11.5 mil |
| Minimum Gap(mil) | 6 mil |
| Surface Finish | Hot air soldering level (HASL) |
| RoHS Required | Yes |
| Warpage | 0.19% |
| Thermal Shock Test | Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5℃,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
| Drill table (mm) | T1: 0.600 |
| T2: 0.700 | |
| T3: 0.800 | |
| T4: 1.000 | |
| T5: 1.100 | |
| T6: 1.200 | |
| T7: 1.240 | |
| T8: 1.300 | |
| T9: 1.350 | |
| T10: 1.400 | |
1.4 Applications
WiFi Router
Battery Led Lights
Scada Systems
GPS Transmitter
Test equipment
1.5 Manufacturing Process of Multi-layer PTH PCB (Peelable Mask)
(1). Material Shearing
(2). Inner Layer Dry Film
(3). Inner Layer Etching
(4). AOI 1
(5). Black Oxidation
(6). Milling Outline Frame
(7). Out Layer Drilling
(8). PTH
(9). Out Layer Dry Film
(10). Copper-tin Electro-Plating
(11). Peeling and Etching
(12). AOI 2
(13). Solder Mask
(14). Silkscreen Printing
(15). Surface Finishing
(16). Electrical Testing
(17). Profile Contouring
(18). Peelable Mask
(19). FQC
(20). Packaging
(21). Delivery
|
|
