Flexible Printed Circuit (FPC) Built on 2oz Polyimide With Immersion Gold and Yellow Coverlay for Interface Module

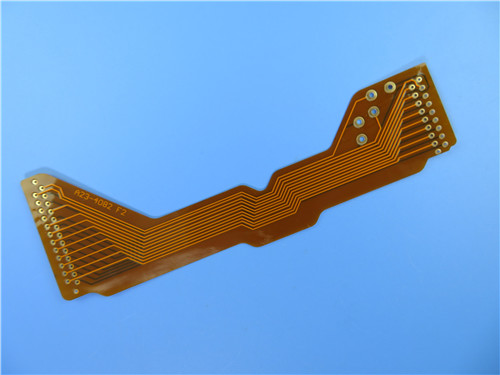

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of 2 Layer flexible printed circuit (FPC) built on 2oz polyimide for the application of Interface Module.

Basic specifications

Base material: Polyimide 25μm

Layer count: 2 layers

Type: Individual FPC

Format: 105mm x 42.3mm = 1 type = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 70μm/ Inner layer 0 μm

Solder mask / Legend: Yellow coverlay / No.

Final PCB height: 0.25 mm

Standard: IPC 6012 Class 2

Packing: 100 pieces are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months

Features and benefits

Reliability increased;

Controllability of electrical parameter design;

The end can be whole soldered;

SMT process is resistant to reflow soldering, resistant to rework;

Professional and experienced engineers check your production files

Competitive price;

No MOQ, low cost for prototypes and small runs quantity;

8000 types of PCB's per month;

Applications

Thin-film switch, contact belt of inkjet printer, industrial control interphone, medical keypad soft board, contact belt of inkjet printer projector soft board

Specifications of Standard 2 Layer FCCL

Clarifications of FPC

According to the combination of base material and copper foil, flexible circuit board can be divided into two types: flexible board with adhesive and flexible board without adhesive. The price of non-adhesive flexible PCB is much higher than that of adhesive flexible PCB, but its flexibility, bonding force between copper foil and substrate and flatness of solder are also better than that of adhesive flexible PCB. So it is only used in the high demand situations, such as the: COF (CHIP ON FLEX, flexible board with bare chip, the high flatness of the pad) and so on. Because its price is high, most of the flexible PCBs used in the market are still adhesive flexible circuit board. Because the flexible circuit board is mainly used in the situation where bending is required, if the design or process is not reasonable, it is easy to produce micro-cracks, welding and other defects.

Economy of using FPC

If the circuit design is relatively simple, the total volume is small, and the space is suitable, the traditional internal connection is much cheaper. Flexible circuits are a good design option if the circuit is complex, processes many signals or has special electrical or mechanical requirements. When the size and performance of applications exceed the capacity of rigid circuits, flexible assembly is the most economical. A 12mil pad with a 5mil through hole and a flexible circuit with 3mil lines and spacing can be fabricated on a thin film. Therefore, it is more reliable to mount the chip directly on the film. There is no flame retardant that could be an ion source. These films may be protective and solidified at higher temperatures to obtain higher glass transition temperatures. Flexible materials are less costly than rigid materials because they are free of connectors.
