Single Layer Printed Circuit Board with White Solder Mask 0.2mm FR-4 PCB Board with OSP for Display Backlight
(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | FR-4(including High Tg 170, High CTI>600V); Aluminum based; Copper based; Rogers RO4350B, RO4003C, RO3003, RO3006, RO3010, RO3210 etc.; Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010 etc..; Taconic TLX-8, TLY-5, RF-35TC, TLF-35 etc..; PTFE F4B DK2.2, DK2.65 etc..; Polyimide and PET. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--420µm (0.5oz - 12oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger |

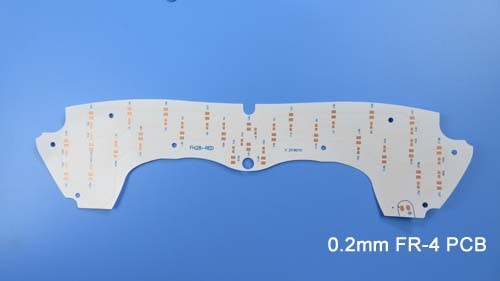

Thin Printed Circuit Board PCB 0.2mm FR-4 PCB Board for Display Backlight
| PCB SIZE | 256 x 66mm=1PCS |
| Base Material: | FR-4 |
| Number of Layers | Single sided PCB |
| SMT | YES |
| Through Hole Components | no |
| LAYER STACKUP | Copper ------- 35um(1oz) |
| FR-4 | |
| Minimum Trace and Space: | 59mil/59mil |
| Minimum / Maximum Holes: | 0.5mm/ 5.8mm |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.22mm |
| Surface Finish | OSP |
| Solder Mask Apply To: | TOP |
| Solder Mask Color: | White solder mask |
| CONTOUR/CUTTING | Punching |
| Side of Component Legend | TOP |
| Colour of Component Legend | Blue silkscreen |
| VIA | None Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
|
|
