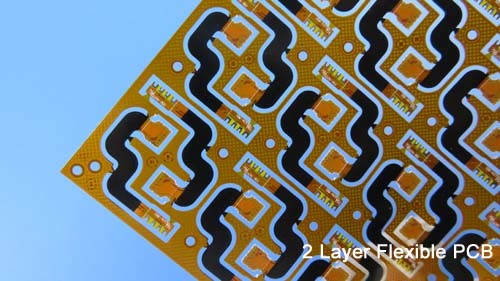

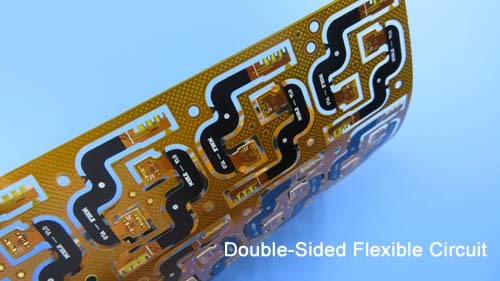

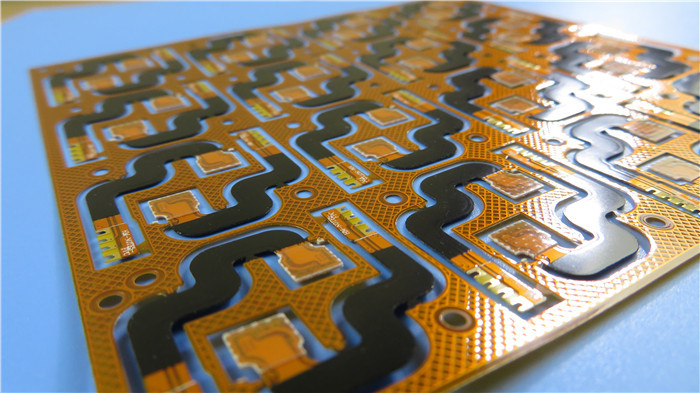

Dual Layer Flexible PCB Built on 1oz Polyimide With Carbon Ink and Immersion Gold For Laser Head
(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)
Specifications
| PCB SIZE | 113 x 120mm=32PCS |
| Base Material: | Polyimide |
| Number of Layers | Double sided FPC |
| SMT | YES |
| Through Hole Components | no |
| LAYER STACKUP | Copper ------- 35um(1oz) |
| Adhesive | |
| Polyimide | |
| Adhesive | |
| Copper ------- 35um(1oz) | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3mm/ 2.0mm |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.15mm ±0.05 |
| Surface Finish | Immersion Gold ENIG |
| Solder Mask Apply To: | TOP, Bottom |
| Solder Mask Color: | Yellow Coverlay, Black ink |
| CONTOUR/CUTTING | Punching |
| Side of Component Legend | Top |
| Colour of Component Legend | White |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
