    Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board

    Selective Hard Gold PCB Dual Layer 0.8mm FR-4 Circuit Board for Security Equipment
    1.1 General description

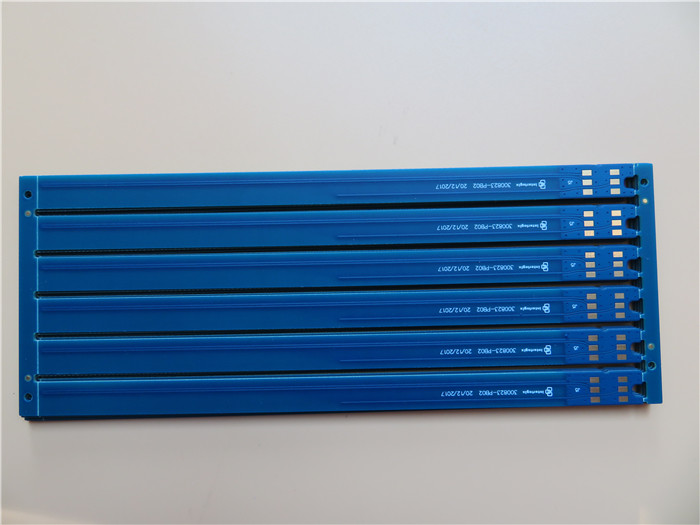

    This is a type of double sided PCB built on FR-4 substrate with Tg 150°C for the application of Security Equipment. It's 0.8 mm thick with white silkscreen(Taiyo) on matt blue solder mask (Kuangshun) and selective hard gold on pads. The base material is from ITEQ supplying 6 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 40 panels are packed for shipment.
    1.2 Features and benifits
    Outstanding thermal resistance and suitable for lead-free process;
    The plated thick gold is Au-Co alloy, the purity of gold reach 99.7% and the deposition thickness can reach 1 to 3 um thick;
    Good wear resistance and low contact resistance;
    Meeting your PCB needs from prototype to mass production;
    UL recognized and RoHS Directive-compliant;
    Experienced sales persons and skilled customer services;
    1.3 Applications
    Data Acquisition
    Car Tracking System
    Door Access Control Systems
    Microwave Radio Systems
    Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board
    1.4 Parameter and data sheet
    PCB SIZE177 x 65 =6 UP
    BOARD TYPEDouble sided PCB
    Number of Layers2 layers
    Surface Mount ComponentsYES
    Through Hole Componentsno
    LAYER STACKUPcopper ------- 18um(0.5oz)+plate TOP layer
    FR-4 0.7 mm
    copper ------- 18um(0.5oz)+plate BOT layer
    TECHNOLOGY
    Minimum Trace and Space:15 mil / 6.5 mil
    Minimum / Maximum Holes:0.3 mm / 3.5 mm
    Number of Different Holes:2
    Number of Drill Holes:35
    Number of Milled Slots:5
    Number of Internal Cutouts:0
    Impedance Control:no
    Number of Gold finger:0
    BOARD MATERIAL
    Glass Epoxy:FR-4 Tg150℃, er<5.4.IT-158, ITEQ Supplied
    Final foil external:1 oz
    Final foil internal:0 oz
    Final height of PCB:0.8 mm ±0.08
    PLATING AND COATING
    Surface FinishSelective hard gold on pads 10 u"
    Solder Mask Apply To:TOP and Bottom, 12micron Minimum
    Solder Mask Color:Matt blue, KSM-S6189BLM1
    Solder Mask Type:LPSM
    CONTOUR/CUTTINGRouting, v-cut
    MARKING
    Side of Component LegendTOP
    Colour of Component LegendWhite, IJR-4000 MW300, Taiyo brand
    Manufacturer Name or Logo:Marked on the board in a conductor and leged FREE AREA
    VIAPlated through hole(PTH), minimum size 0.3mm.
    FLAMIBILITY RATINGUL 94-V0 Approval MIN.
    DIMENSION TOLERANCE
    Outline dimension:0.0059"
    Board plating:0.0029"
    Drill tolerance:0.002"
    TEST100% Electrical Test prior shipment
    TYPE OF ARTWORK TO BE SUPPLIEDemail file, Gerber RS-274-X, PCBDOC etc
    SERVICE AREAWorldwide, Globally.
    Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board
    1.5 Printed Circuit Board Capability 2020
    ParameterValue
     Layer Counts 1-32
     Substrate MaterialFR-4(including High Tg 170, High CTI>600V); Aluminum based; Copper based; Rogers RO4350B, RO4003C, RO3003, RO3006, RO3010, RO3210 etc.; Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010 etc..; Taconic TLX-8, TLY-5, RF-35TC, TLF-35 etc..; Arlon AD450, AD600 etc; PTFE F4B DK2.2, DK2.65 etc..; Polyimide and PET.
     Maximum Size Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
     Board Outline Tolerance ±0.0059" (0.15mm)
     PCB Thickness0.0157" - 0.3937" (0.40mm--10.00mm)
    Thickness Tolerance(T≥0.8mm) ±8%
    Thickness Tolerance(t<0.8mm) ±10%
     Insulation Layer Thickness0.00295" - 0.1969" (0.075mm--5.00mm)
     Minimum Track0.003" (0.075mm)
     Minimum Space 0.003" (0.075mm)
     Outer Copper Thickness 35µm--420µm (1oz-12oz)
     Inner Copper Thickness 17µm--420µm (0.5oz - 12oz)
     Drill Hole(Mechanical)0.0059" - 0.25" (0.15mm--6.35mm)
     Finished Hole(Mechanical)0.0039"-0.248" (0.10mm--6.30mm)
    DiameterTolerance(Mechanical)0.00295" (0.075mm)
     Registration (Mechanical)0.00197" (0.05mm)
     Aspect Ratio 12:1
     Solder Mask Type LPI
     Min Soldermask Bridge0.00315" (0.08mm)
     Min Soldermask Clearance0.00197" (0.05mm)
     Plug via Diameter0.0098" - 0.0236" (0.25mm--0.60mm)
    Impedance Control Tolerance ±10%
     Surface FinishHASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
