8oz Aluminum PCB Heavy Copper Aluminum Based PCB for High Power
Electronics
1.1 General Description

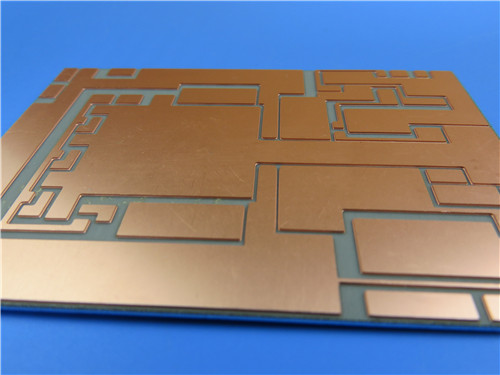

This is a type of heavy copper PCB built on aluminum substrate with
breakdown voltage 4000 VDC for the application of Large-current
application. It's 1.2 mm thick without silkscreen and solder mask
and a coating of OSP on pads. The base material is from Totking
supplying single up PCB. They're fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 25 panels are packed for shipment.
1.2 Parameter and Data Sheet
| PCB SIZE | 75 x 64mm=1PCS |
| BOARD TYPE | Aluminum PCB, IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 280 um(8 oz) |
| 1W/MK dielectric material |
| Aluminum 5052 0.8mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 70 mil / 70 mil |
| Minimum / Maximum Holes: | N/A |
| Number of Different Holes: | N/A |
| Number of Drill Holes: | N/A |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 8 OZ |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.2mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | OSP |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
1.3 Features and Benefits
Optimization combination of power circuit and control circuit
Better heat dissipation of high heat generated by large current
PCB manufacturing is on required specifications.
Free-of-charge PCB panelization
1.4 Applications
Uninterrupted Power Supply
Battery Power Supply
Power Supply Components
Electric vehicle charging (commercial and industrial)
2000W Inverter
