PCB Solder Paste SMT Laser Cut Stencil Shim Aluminum Framed Stencil
0.15mm Stainless Steel Shim
1.1 General description

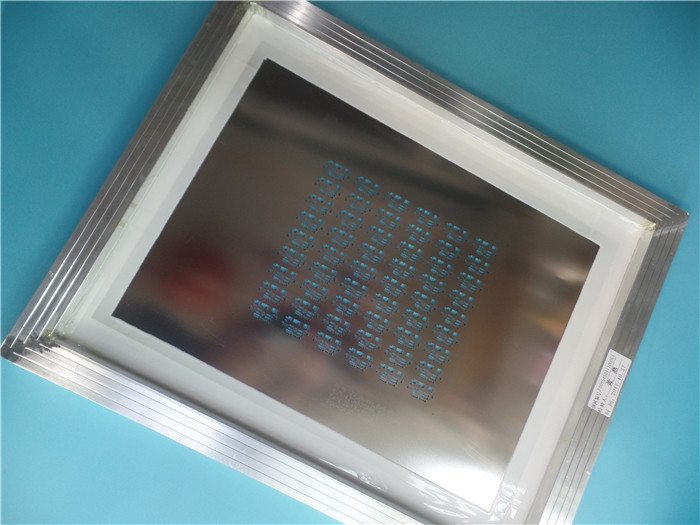

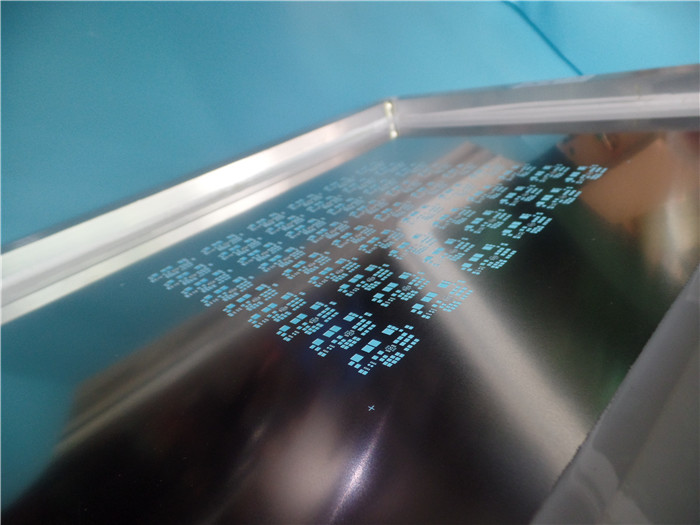

This is a type of laser cut SMT stencil built on 0.15mm stainless
steel foil with aluminum frame 520 mm x 420 mm x 20mm dimension.
It’s fabricated per IPC 7525A using supplied Gerber data, squeegee
area locating in the center. Fiducal marks are through holes to
suit for the SMT machine. It’s packed with KK carton (hard card)
and usually 2 stencils are packed for shipment.
1.2 Features and benifits
The data file is used directly to produce and reduce the error
rate;
The opening position accuracy of SMT template is very high: the
whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is
advantageous to the printing and forming of tin paste;
Quick CADCAM checking and free PCB quotation;
Money-saving, Worry-saving and Labor-saving;
Small quantity order is accepted;
More than 15 years of experience;
1.3 Applications
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.
1.4 Parameter and data sheet
| Dimension: | 520 x 420 mm =1 PCS |
| Structure | Stencil foils with aluminum frame |
| Base material | Stainless steel shim |
| Foil Thickness | 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm |
| Aperture configured | Laser cut |
| Appearance | Engraving and electro polishing |
| Fiducial mark | Through hole |
| Service area: | Worldwide |
| Quantity of open pads: | 1350 |
| Advantages: | a) High precision dimension; b) Good shape on the window; c) Hole
wall is smoother. |
| Application: | CSP, BGA, 0.5mm QFP etc. package |
1.5 Opening Holes Design for SMT Stencil
| Component Type | Pitch | Soldering Width | Soldering Length | Opening Width | Opening Length | Shim Thickness |
| PLCC | 1.27mm | 0.65mm | 2.00mm | 0.60mm | 1.95mm | 0.15-0.25mm |
| QFP | 0.635mm | 0.35mm | 1.50mm | 0.32mm | 1.45mm | 0.15-0.18mm |
| QFP | 0.50mm | 0.254-0.33mm | 1.25mm | 0.22-0.25mm | 1.20mm | 0.12-0.15mm |
| QFP | 0.40mm | 0.25mm | 1.25mm | 0.20mm | 1.20mm | 0.10-0.12mm |
| QFP | 0.30mm | 0.20mm | 1.00mm | 0.15mm | 0.95mm | 0.07-0.12mm |
| 0402 | | 0.50mm | 0.65mm | 0.45mm | 0.60mm | 0.12-0.15mm |
| 0201 | | 0.25mm | 0.40mm | 0.23mm | 0.35mm | 0.07-0.12mm |
| BGA | 1.27mm | 0.80mm | | 0.75mm | 0.75mm | 0.15-0.20mm |
| BGA | 1.00mm | 0.38mm | | 0.35mm | 0.35mm | 0.10-0.12mm |
| BGA | 0.50mm | 0.30mm | | 0.28mm | 0.28mm | 0.07-0.12mm |
| Flip Chip | 0.25mm | 0.12mm | 0.12mm | 0.12mm | 0.12mm | 0.08-0.10mm |
| Flip Chip | 0.20mm | 0.10mm | 0.10mm | 0.10mm | 0.10mm | 0.05-0.10mm |
