SMT Stencil Laser Cut 0.1mm Stainless Steel Shim for BGA Package
1.1 General description

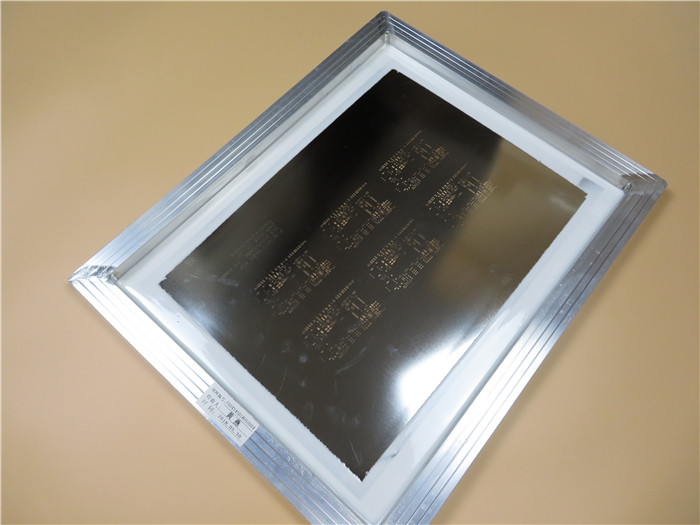

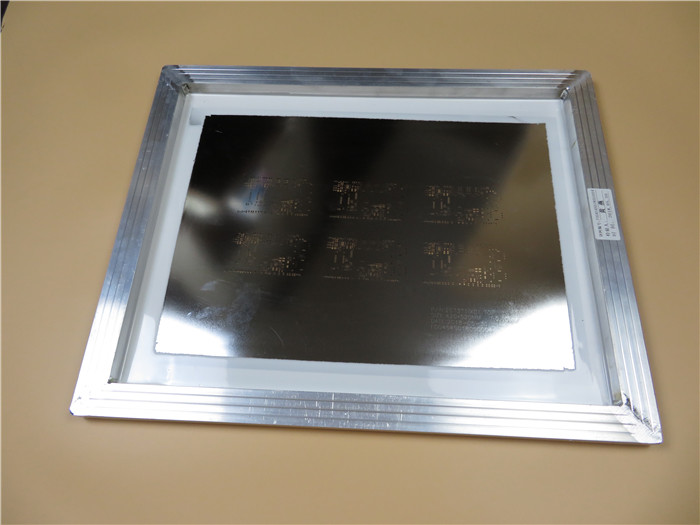

This is a type of SMT stencil (100% laser cut) built on 0.10mm
stainless steel foil with aluminum frame 520 mm x 420 mm x 20mm
dimension. It’s fabricated per IPC 7525A using supplied Gerber
data, squeegee area locating in the center. Fiducal marks are
half-etch dented suit for the SMT machine. It’s packed with KK
carton (hard card) and usually 2 stencils are packed for shipment.
1.2 Features and benifits
The data file is used directly to produce and reduce the error
rate;
The opening position accuracy of SMT template is very high: the
whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is
advantageous to the printing and forming of tin paste;
Strict WIP inspection and monitoring as well as working
instruction;
Delivery on time. Higher than 99% on-time-delivery rate;
Customer complaint rate: <1%
Quick CADCAM checking and free quotation;
More than 15 years of experience;
1.3 Applications
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.
1.4 Parameter and data sheet
| Dimension: | 520 x 420 mm =1 PCS |
| Structure | Stencil foils with aluminum frame |
| Base material | Stainless steel shim |
| Foil Thickness | 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm |
| Aperture configured | Laser cut |
| Appearance | Engraving and electro polishing |
| Fiducial mark | Through hole |
| Service area: | Worldwide |
| Quantity of open pads: | 1556 |
| Advantages: | a) High precision dimension; b) Good shape on the window; c) Hole
wall is smoother. |
| Application: | CSP, BGA, 0.5mm QFP etc. package |
1.5 Opening Holes Design for SMT Stencil
| Component Type | Pitch | Soldering Width | Soldering Length | Opening Width | Opening Length | Shim Thickness |
| PLCC | 1.27mm | 0.65mm | 2.00mm | 0.60mm | 1.95mm | 0.15-0.25mm |
| QFP | 0.635mm | 0.35mm | 1.50mm | 0.32mm | 1.45mm | 0.15-0.18mm |
| QFP | 0.50mm | 0.254-0.33mm | 1.25mm | 0.22-0.25mm | 1.20mm | 0.12-0.15mm |
| QFP | 0.40mm | 0.25mm | 1.25mm | 0.20mm | 1.20mm | 0.10-0.12mm |
| QFP | 0.30mm | 0.20mm | 1.00mm | 0.15mm | 0.95mm | 0.07-0.12mm |
| 0402 | | 0.50mm | 0.65mm | 0.45mm | 0.60mm | 0.12-0.15mm |
| 0201 | | 0.25mm | 0.40mm | 0.23mm | 0.35mm | 0.07-0.12mm |
| BGA | 1.27mm | 0.80mm | | 0.75mm | 0.75mm | 0.15-0.20mm |
| BGA | 1.00mm | 0.38mm | | 0.35mm | 0.35mm | 0.10-0.12mm |
| BGA | 0.50mm | 0.30mm | | 0.28mm | 0.28mm | 0.07-0.12mm |
| Flip Chip | 0.25mm | 0.12mm | 0.12mm | 0.12mm | 0.12mm | 0.08-0.10mm |
| Flip Chip | 0.20mm | 0.10mm | 0.10mm | 0.10mm | 0.10mm | 0.05-0.10mm |
