    Laser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frame


    Laser Stencil 598 x 598 mm Built on 0.12mm Stainless Steel Foil for SMT usage.
    1.1 General description

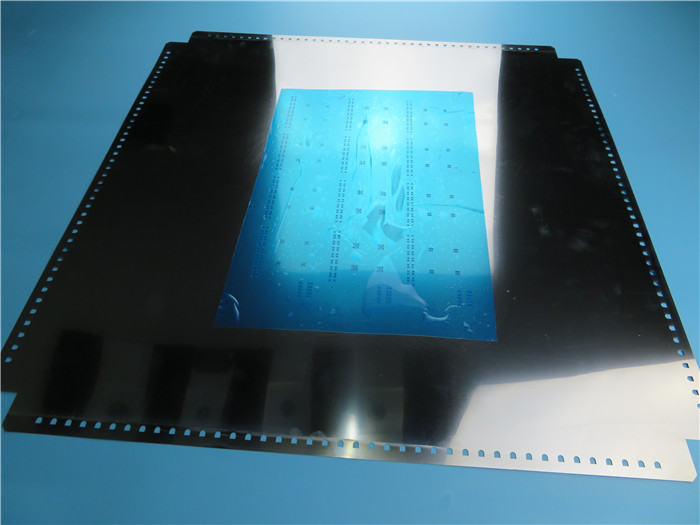

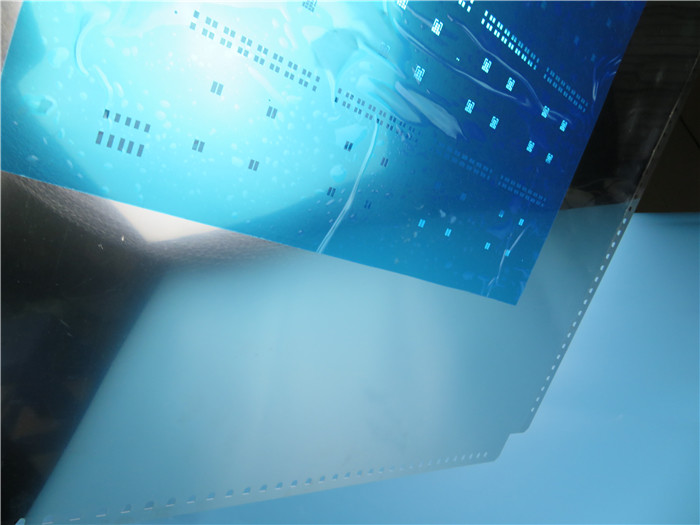

    This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 598 mm x 598 mm length and width. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. 4 sides of edges are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.
    Laser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frameLaser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frameLaser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frame
    1.2 Features and benifits
    The data file is used directly to produce and reduce the error rate;
    The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
    The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
    ISO9000 certified manufacturing factory;
    12 hours quotation;
    Quick Lead time: 1-2 days;
    No MOQ, low cost for prototypes and small runs quantity;
    1.3 Application
    SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.
    Laser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frameLaser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frame
    1.4 Parameter and data sheet
    Dimension:598 x 598 mm =1 PCS
    StructureStencil foils with aluminum frame
    Base materialStainless steel shim
    Foil Thickness0.12mm
    Aperture configuredLaser cut
    AppearanceEngraving and electro polishing
    Fiducial markThrough hole
    Service area:Worldwide
    Quantity of open pads:166
    Advantages:a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
    Application:CSP, BGA, 0.5mm QFP etc. package
    1.5 Opening Holes Design for Stencil
    Component TypePitchSoldering WidthSoldering LengthOpening WidthOpening LengthShim Thickness
    PLCC1.27mm0.65mm2.00mm0.60mm1.95mm0.15-0.25mm
    QFP0.635mm0.35mm1.50mm0.32mm1.45mm0.15-0.18mm
    QFP0.50mm0.254-0.33mm1.25mm0.22-0.25mm1.20mm0.12-0.15mm
    QFP0.40mm0.25mm1.25mm0.20mm1.20mm0.10-0.12mm
    QFP0.30mm0.20mm1.00mm0.15mm0.95mm0.07-0.12mm
    04020.50mm0.65mm0.45mm0.60mm0.12-0.15mm
    02010.25mm0.40mm0.23mm0.35mm0.07-0.12mm
    BGA1.27mm0.80mm0.75mm0.75mm0.15-0.20mm
    BGA1.00mm0.38mm0.35mm0.35mm0.10-0.12mm
    BGA0.50mm0.30mm0.28mm0.28mm0.07-0.12mm
    Flip Chip0.25mm0.12mm0.12mm0.12mm0.12mm0.08-0.10mm
    Flip Chip0.20mm0.10mm0.10mm0.10mm0.10mm0.05-0.10mm

    Laser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frameLaser Cut DIY PCB Stencil 598X598mm Stencil foils with aluminum frame
