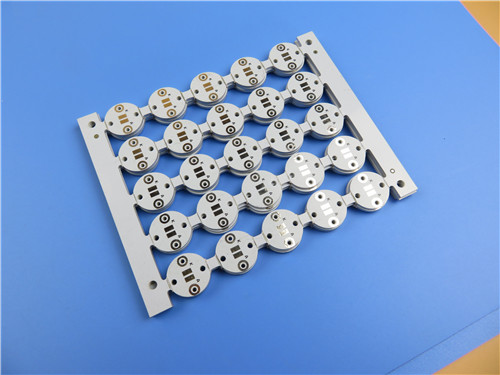

LED PCB Aluminum Base MCPCB With 3W / MK Thermal Conductivity
(PCB’s are custom-made products, the picture and parameters shown
are just for reference)
General description
This is a type of aluminum PCB for the application of automotive
ignitor. It's a single layer MCPCB board at 1.6 mm thick with 3
W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder
mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. 25 panels are packed for shipment.
Parameter and data sheet
| PCB SIZE | 100 x 100mm=25PCS |
| BOARD TYPE | IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 3.0W/MK 200um dielectric material |
| Aluminum base 1060 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/14mil |
| Minimum / Maximum Holes: | 5.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 3.0W/MK 200um dielectric material |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | as per requirement |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the
module and prolongs the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including
thermal interface materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
DDU Door to door shipment with competitive shipping cost,
Engineering design prevents problems from occurring in
pre-production.
Products and Manufacturing are certified by authorized
organizations.
Diversified shipping method
UL recognized and RoHS Directive-compliant
RoHS materials
Applications
Dining room lighting
DC/AC converter
Radiator
Automotive lighting
