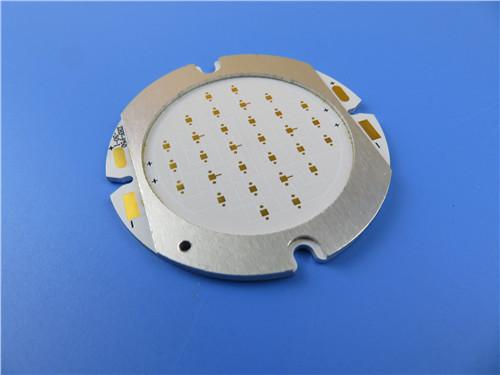

Composite Aluminum PCB Single Sided Metal Circuit Board with 2.0mm
Thick
(PCB’s are custom-made products, the picture and parameters shown
are just for reference)
General description
This is a type of aluminum PCB for the application of electronic
regulator. It's a single layer MCPCB board at 2.0 mm thick with 2
W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder
mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. 25 boards are packed for shipment.
Parameter and data sheet
| PCB SIZE | 50 x 50 mm ( diameter 50 mm board) |
| BOARD TYPE | Aluminum PCB, Metal PCB |
| Number of Layers | Single sided |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 70um(2oz) |
| 2.0W/MK 75um dielectric material | |
| Aluminum base 1060 | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 40mil / 9mil |
| Minimum / Maximum Holes: | 1.5 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 1 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 2.0W/MK 75um dielectric material |
| Final foil external: | 2oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 2.0 mm ±0.2 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | Super white, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | as per requirement |
| VIA | via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the
module and prolongs the service life.
Power density and reliability are improved up 10%.
Right manufacturing instruction (MI),
On-time service
More than 18 years' experience
High technology
Applications
Gas station lighting
A filter electric circuit
Automotive ignitor
Automobile lamp
