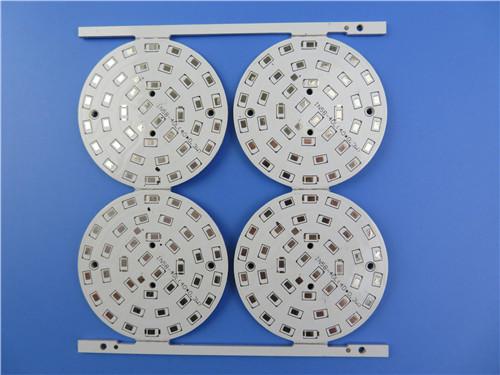

Aluminum LED PCB For Outdoor Lighting
(PCB’s are custom-made products, the picture and parameters shown
are just for reference)
General description
This is a type of Aluminum PCB for the application of Led Lighting.
It's a single layer MCPCB board at 1.6 mm thick with 1 W/MK thermal
conductivity. The aluminum plate is from ITEQ, Solder mask and
silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using
supplied Gerber data. 25 panels are packed separately.
Parameter and data sheet
| PCB SIZE | 144 x 135 mm =4UP (Single board diameter 66 mm) |
| BOARD TYPE | Metal core PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material 75um | |
| Aluminum 1060 1.5mm | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10mil/10mil |
| Minimum / Maximum Holes: | 2.0 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Aluminum core: | 1W / MK dielectric material 75um |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | White, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Throught Hole (NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features and benefits
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Prolong the service life of the product,
Make delivery on time keeping 98% on-time-delivery rate.
Eligible products rate of first production: >95%
Customer complaint rate: <1%
Applications
Outdoor lighting
Office automation equipment
Power module
Fluorescent lamp
|
