    Through Hole 0.12mm PCB SMT Stencil Electro Polishing

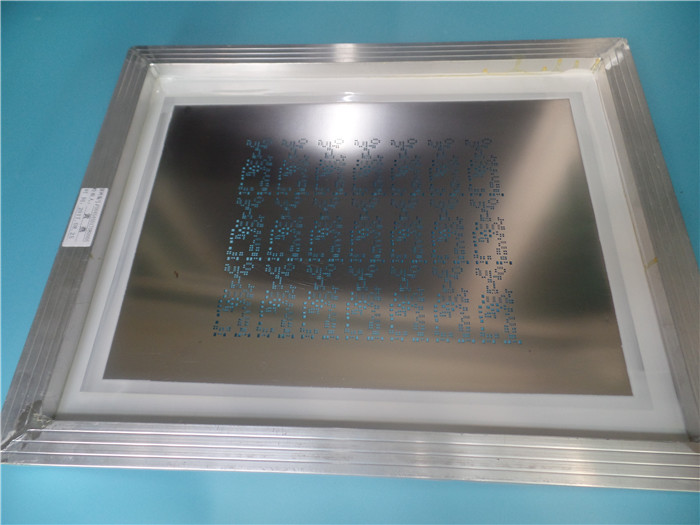

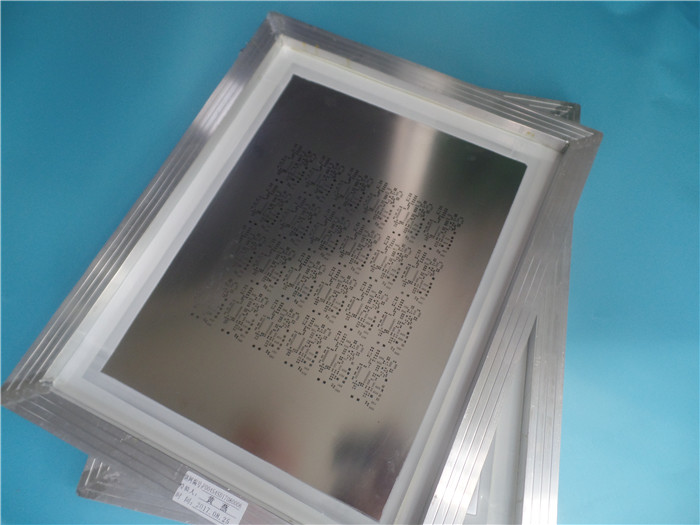

    Laser SMT Stencil Made of 0.12mm Stainless Steel Foil With 520 X 420mm Aluminum Frame
    1.1 General description
    This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 520 mm x 420 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center.Fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.
    1.2 Features and benifits
    The data file is used directly to produce and reduce the error rate;
    The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
    The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
    Quick and on-time delivery;
    Great customer service;
    Diversified shipping method;
    No MOQ, low cost for prototypes and small runs quantity;
    Through Hole 0.12mm PCB SMT Stencil Electro PolishingThrough Hole 0.12mm PCB SMT Stencil Electro PolishingThrough Hole 0.12mm PCB SMT Stencil Electro Polishing
    1.3 Applications
    SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.
    Through Hole 0.12mm PCB SMT Stencil Electro PolishingThrough Hole 0.12mm PCB SMT Stencil Electro Polishing
    1.4 Parameter and data sheet
    Dimension:520 x 420 mm =1 PCS
    StructureStencil foils with aluminum frame
    Base materialStainless steel shim
    Foil Thickness0.12mm
    Aperture configuredLaser cut
    AppearanceEngraving and electro polishing
    Fiducial markThrough hole
    Service area:Worldwide
    Quantity of open pads:1254
    Advantages:a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
    Application:CSP, BGA, 0.5mm QFP etc. package
    Through Hole 0.12mm PCB SMT Stencil Electro Polishing
    1.5 Opening Holes Design for SMT Stencil
    Component TypePitchSoldering WidthSoldering LengthOpening WidthOpening LengthShim Thickness
    PLCC1.27mm0.65mm2.00mm0.60mm1.95mm0.15-0.25mm
    QFP0.635mm0.35mm1.50mm0.32mm1.45mm0.15-0.18mm
    QFP0.50mm0.254-0.33mm1.25mm0.22-0.25mm1.20mm0.12-0.15mm
    QFP0.40mm0.25mm1.25mm0.20mm1.20mm0.10-0.12mm
    QFP0.30mm0.20mm1.00mm0.15mm0.95mm0.07-0.12mm
    04020.50mm0.65mm0.45mm0.60mm0.12-0.15mm
    02010.25mm0.40mm0.23mm0.35mm0.07-0.12mm
    BGA1.27mm0.80mm0.75mm0.75mm0.15-0.20mm
    BGA1.00mm0.38mm0.35mm0.35mm0.10-0.12mm
    BGA0.50mm0.30mm0.28mm0.28mm0.07-0.12mm
    Flip Chip0.25mm0.12mm0.12mm0.12mm0.12mm0.08-0.10mm
    Flip Chip0.20mm0.10mm0.10mm0.10mm0.10mm0.05-0.10mm
