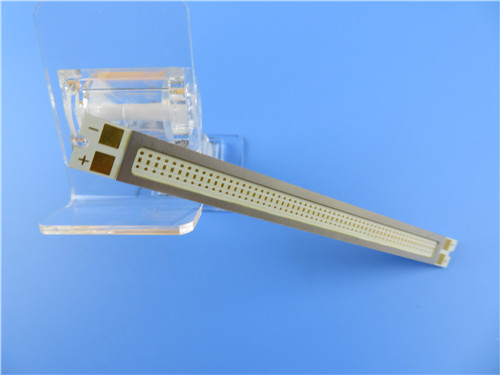

Composite Aluminum PCB Board For Switch Regulator
(PCB’s are custom-made products, the picture and parameters shown
are just for reference)
General description
This is a type of aluminum PCB for the application of switch
regulator. It's a single layer MCPCB board at 1.6 mm base with 1
W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder
mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. 30 boards are packed separately.
Parameter and data sheet
| PCB SIZE | 100 x 25mm=1PCS |
| BOARD TYPE | IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material 75um | |
| Aluminum 1060 1.6mm | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10mil/18mil |
| Minimum / Maximum Holes: | 0 |
| Number of Different Holes: | 0 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Aluminum core: | 1W / MK dielectric material 75um |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.8mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | White, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Throught Hole (NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features and benefits
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Products and Manufacturing are certified by authorized
organizations.
UL conformed
Applications
Ceiling lamp aluminum PCB
Power supply device
A filter electric circuit
High frequency amplifier
