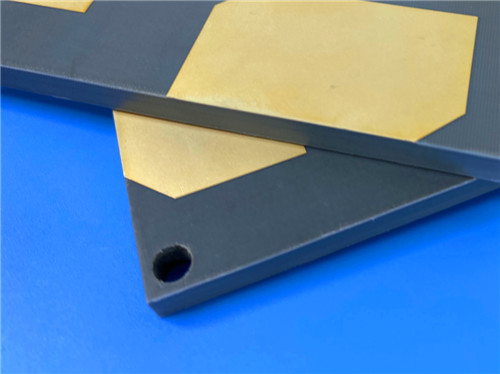

We are thrilled to announce the arrival of our newly shipped F4BTMS1000 PCB, a cutting-edge solution designed to meet the most demanding requirements of high-frequency and high-reliability applications. Built with the advanced F4BTMS series material, this PCB is engineered to deliver exceptional performance, durability, and thermal stability, making it the ideal choice for aerospace, radar, and satellite communications.

Why Choose the F4BTMS1000 PCB?
The F4BTMS1000 PCB is not just another circuit board – it’s a technological leap forward. Here’s what makes it stand out:

Ultra-Low Signal Loss: With a dielectric constant (Dk) of 10.2 @ 10GHz and a dissipation factor (Df) of 0.0020 @ 10GHz, it ensures minimal signal attenuation and superior signal integrity.

Exceptional Thermal Management: A thermal conductivity of 0.81 W/mK enables efficient heat dissipation, reducing hot spots and enhancing device reliability.

Outstanding Dimensional Stability: Low CTE values (16/18/32 ppm/°C) ensure reliability across a wide temperature range (-55°C to 288°C).

Low Moisture Absorption: 0.03% moisture absorption makes it ideal for harsh and humid environments.

Robust Mechanical Properties: RTF copper foil reduces conductor loss and provides excellent peel strength, ensuring durability and performance.

Key Specifications
Board Dimensions: 145mm x 145mm, with a thickness of 12.9mm.

Layer Count: 4-layer rigid PCB.

Copper Weight: 1oz (35μm) for both inner and outer layers.

Surface Finish: HASL (Hot Air Solder Leveling) for reliable solderability.

Trace/Space: 5/7 mils, enabling high-density routing.

Via Plating Thickness: 20μm, ensuring durability and conductivity.

Rigorous Testing: 100% electrical testing guarantees reliability before shipment.

Applications That Demand Excellence
The F4BTMS1000 PCB is designed for industries where performance and reliability are critical:

Aerospace and Satellite Communications: Ensures reliable operation in space and cabin equipment, even under extreme conditions.

Radar and Military Systems: Delivers precision and durability in radar and phased array antennas, supporting mission-critical operations.

Microwave and RF Systems: Provides stable signal transmission in high-frequency environments, ensuring optimal performance.

Feed Networks and Antennas: Supports complex signal routing with minimal loss, enhancing overall system efficiency.

Why the F4BTMS Series?
Unmatched Performance: Ideal for high-frequency, high-power applications.

Reliability in Extreme Conditions: Perfect for aerospace, military, and satellite systems.

Global Availability: Accessible worldwide, ensuring seamless integration into your projects.

Sustainability: Halogen-free and environmentally friendly, aligning with global standards.

The Future of High-Performance PCBs

The F4BTMS1000 PCB is more than just a material; it exemplifies the power of innovation. Combining advanced ceramics, ultra-thin glass fiber, and cutting-edge manufacturing techniques, this material establishes a new benchmark for high-frequency and high-reliability applications.

Whether you're designing the next generation of aerospace systems, radar technology, or satellite communications, the F4BTMS1000 PCB offers the necessary performance, reliability, and durability for success.

Upgrade Your Designs with the F4BTMS1000 PCB
Ready to experience the future of high-performance PCBs? Contact us today to learn more or request a quote!
