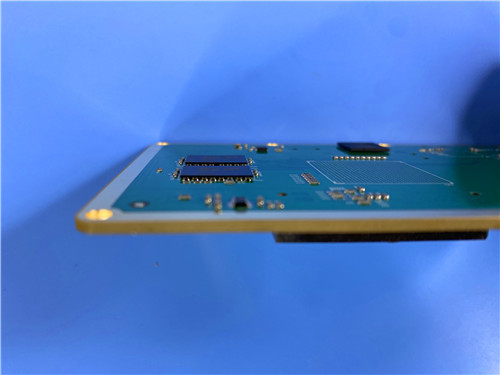

Introducing our high-performance 6-layer printed circuit board (PCB) designed for advanced applications requiring exceptional thermal management and reliability. Constructed from Isola's 370HR material, this PCB is engineered to meet the demands of various industries, including computing, automotive, and aerospace.

High-Performance Base Material
The foundation of our PCB lies in Isola 370HR, a high-performance FR-4 material known for its superior thermal properties. With a glass transition temperature (Tg) of 180°C, 370HR is designed to withstand the high temperatures often encountered in dense electronic applications. This material not only offers excellent thermal management but also boasts low expansion rates, ensuring dimensional stability across varying temperatures.

Precision Engineering
With dimensions of 102.87mm x 128.5mm and a tolerance of +/- 0.15mm, this PCB is manufactured to exact specifications. The minimum trace and space of 4/4 mils, along with a minimum hole size of 8 mils, allow for intricate circuit designs while maintaining high reliability.

Electrical Performance and Testing

Impedance Matching
This PCB is meticulously designed for 50-ohm impedance on multiple layers, ensuring signal integrity throughout the device. This is critical for high-speed applications, where even minor deviations can lead to performance issues. The impedance is matched with tolerances of +/- 10%, accommodating the needs of modern electronic systems.

Rigorous Electrical Testing
To guarantee reliability, each PCB undergoes comprehensive electrical testing. This step ensures that all components function as intended and meet the stringent requirements of IPC-Class-2 standards. Our commitment to quality means that you can trust our PCBs in mission-critical applications.

Features That Stand Out

Surface Finish and Masking
The ENIG (Electroless Nickel Immersion Gold) surface finish, with a gold thickness of 0.1um, provides excellent solderability, enhancing the reliability of solder joints. Additionally, the green solder mask coupled with white silkscreen enhances visibility and ease of inspection, while ensuring no silkscreen is present on solder pads, minimizing potential assembly issues.

Eco-Friendly Compliance
Our PCB is RoHS compliant, ensuring that it meets international regulations regarding hazardous substances. This commitment to environmental responsibility is increasingly important in today's market.

Versatile Applications

The versatility of our 6-layer PCB makes it suitable for a wide range of applications, including:

- Computing and Storage: From motherboards to data storage solutions, our PCBs support high-speed data processing.

- Networking and Communication: Essential for routers, switches, and telecommunications equipment, ensuring seamless connectivity.

- Automotive and Transportation: Designed to withstand the demanding environments of automotive electronics, including infotainment and safety systems.

- Consumer Electronics: Perfect for smartphones, tablets, and wearable devices, where compactness and efficiency are key.

- Aerospace and Defense: Built to meet the rigorous standards of the aerospace industry, ensuring reliability under extreme conditions.

- Medical Devices: Critical for instrumentation and monitoring equipment, where precision and reliability are paramount.

Conclusion

Our newly shipped 6-layer PCB is more than just a circuit board; it is a culmination of advanced materials, meticulous engineering, and a commitment to quality. With its robust constrution and high-performance specifications, this PCB is poised to meet the challenges of modern electronics head-on.

As industries continue to push the boundaries of technology, our PCB stands ready to support the next generation of innovations. Whether you're developing cutting-edge consumer electronics or mission-critical aerospace systems, our 6-layer PCB is designed to deliver performance and reliability when it matters most. Explore the possibilities and elevate your projects with our advanced PCB solutions.
