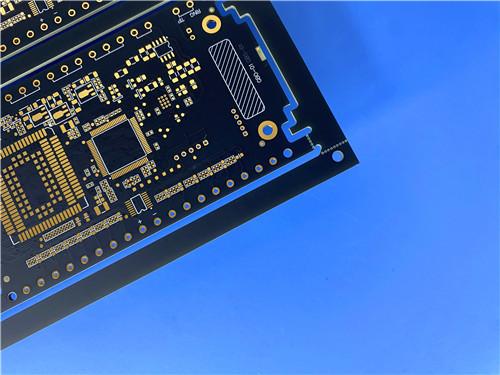

This 6-layer PCB crafted from high-performance Megtron6 (M6) R-5775G. Engineered for high-speed, low-loss applications, it is ideal for cutting-edge technologies such as 5G communication, automotive electronics, and high-performance computing.

Construction Details

This 6-layer PCB is meticulously engineered to meet the rigorous demands of today’s electronic devices. Here are the key construction details:

- Base Material: Megtron6 (M6) - R5775G (HVLP)
- Layer Count: 6 layers, allowing for complex circuit designs.
- Board Dimensions: 81.9 mm x 53.7 mm, with a tolerance of ±0.15 mm, ensuring precise fit in device enclosures.
- Minimum Trace/Space: 4/5 mils, facilitating high-density layouts.
- Minimum Hole Size: 0.3 mm, accommodating various component types.
- Finished Board Thickness: 1.4 mm, optimized for durability.
- Surface Finish: Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG), providing excellent solderability and corrosion resistance.

Stackup Configuration

The stackup of our PCB is designed for optimal performance in high-frequency applications:

Copper Layers: Multiple layers of copper ranging from 17 μm to 35 μm, strategically placed for effective signal transmission.

Prepreg Materials: R-5670(G) prepregs provide stability and insulation between copper layers.

Core Material: M6 Core R5775G (HVLP) ensures low dielectric loss and high thermal reliability.

Advantages of Megtron6 (M6) R-5775G

High-Speed Performance
Megtron6 laminate is specifically formulated for high-frequency applications. With a dielectric constant of 3.4 at 1 GHz and 3.34 at 13 GHz, it minimizes signal loss, making it ideal for 5G communications and other high-speed technologies.

Low Dielectric Loss
The dissipation factor of 0.002 at 1 GHz and 0.0037 at 13 GHz ensures that energy is efficiently transmitted, reducing heat generation and improving overall performance.

Thermal Reliability
The high Tg value (>185 °C) and thermal decomposition temperature (Td) of 410 °C make this PCB suitable for environments with significant thermal challenges, such as automotive and aerospace applications.

Environmental Compliance
This PCB is RoHS compliant and halogen-free, aligning with global standards for green manufacturing. This commitment to sustainability is crucial for modern electronic design.

Typical Applications

5G Communication: Base stations, millimeter-wave antennas, RF front-ends

Automotive Electronics: 77 GHz radar systems, ADAS

Data Centers: High-speed server motherboards, optical module PCBs

Aerospace: Circuit boards for satellite communication and radar

Consumer Electronics: Wi-Fi 6E/7 routers, AR/VR devices

Conclusion
This PCB with Megtron6 material is a pivotal component in the landscape of modern electronics. From high-speed communication to automotive safety systems, its advanced features and materials provide the foundation for innovative designs. As technology continues to advance, this PCB stands ready to meet the challenges of tomorrow’s high-performance applications. Embrace the future of electronics with our sophisticated, reliable, and environmentally responsible PCB solutions.
