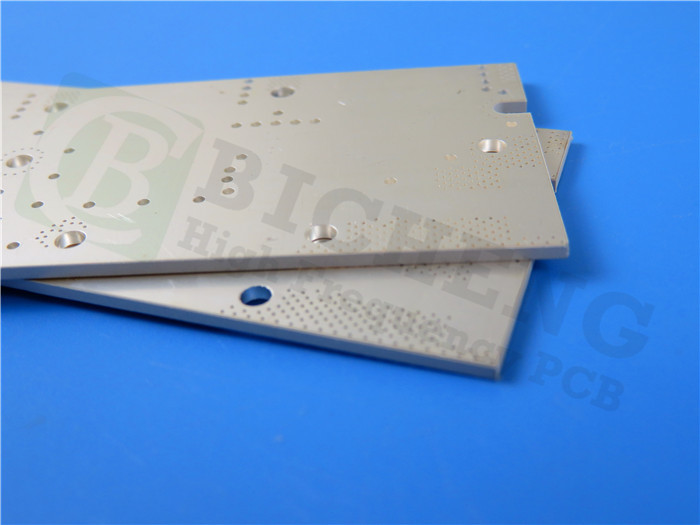

    30mil DiClad 880 High Frequency PCB 2-layer Immesion Silver

    Introducing our newly shipped PCB based on DiClad 880, a cutting-edge substrate that harnesses the power of woven fiberglass and PTFE-based composites. Engineered by Rogers, a leader in advanced materials, the DiClad 880 PCB offers unparalleled performance, exceptional dielectric properties, and unmatched reliability for a wide range of applications.


    Key Features & Benefits:

    1. Impressive Dielectric Performance:
    The DiClad 880 PCB boasts a low dielectric constant (DK) of 2.17 or 2.2 +/- 0.04 at 10 GHz/23°C and 1 MHz, ensuring optimal signal integrity and minimal loss. Its impressively low dissipation factor of 0.0009 at 10 GHz/23°C and 0.0008 at 1 MHz further enhances its efficiency.


    2. Temperature Stability:
    With a temperature coefficient of DK (TcDK) of -160 ppm/°C ranging from -10°C to 140°C, the DiClad 880 PCB maintains its exceptional performance even under extreme temperature conditions. Say goodbye to signal degradation and hello to reliability.


    3. Moisture Resistance:
    DiClad 880 features the lowest moisture absorption among PTFE-based composites, standing at a mere 0.02%. This exceptional moisture resistance ensures consistent performance and longevity, even in humid environments.


    4. Dimensional Stability:
    This PCB offers excellent dimensional stability, with a coefficient of thermal expansion (CTE) of 25 ppm/°C (X-axis), 34 ppm/°C (Y-axis), and 252 ppm/°C (Z-axis). This stability ensures precise and reliable connections, even with varying temperatures.


    5. Wide Frequency Range:
    Experience stable DK performance across a wide frequency range, making the DiClad 880 PCB suitable for diverse applications that demand consistent signal transmission.


    6. Enhanced Design Flexibility:
    Thanks to its low DK, the DiClad 880 PCB supports wider line widths, enabling lower insertion loss and improved design flexibility. Achieve optimal performance without compromising on your design requirements.


    PropertyTest MethodConditionDiClad 880
    Dielectric Constant @ 10 GHzIPC TM-650 2.5.5.5C23/502.17, 2.20
    Dielectric Constant @ 1 MHzIPC TM-650 2.5.5.3C23/502.17, 2.20
    Dissipation Factor @ 10 GHzIPC TM-650 2.5.5.5C23/500.0009
    Dissipation Factor @ 1 MHzIPC TM-650 2.5.5.3C23/500.0008
    Thermal Coefficient of Er (ppm/°C)IPC TM-650 2.5.5.5
    Adapted
    -10°C to +140°C-160
    Peel Strength (lbs.per inch)IPC TM-650 2.4.8After Thermal Stress14
    Volume Resistivity (MΩ-cm)IPC TM-650 2.5.17.1C96/35/901.4 x 10 9
    Surface Resistivity (MΩ)IPC TM-650 2.5.17.1C96/35/902.9 x 10 6
    Arc ResistanceASTM D-495D48/50>180
    Tensile Modulus (kpsi)ASTM D-638A, 23°C267, 202
    Tensile Strength (kpsi)ASTM D-882A, 23°C8.1, 7.5
    Compressive Modulus (kpsi)ASTM D-695A, 23°C237
    Flexural Modulus (kpsi)ASTM D-790A, 23°C357
    Dielectric Breakdown (kV)ASTM D-149D48/50>45
    Density (g/cm3)ASTM D-792 Method AA, 23°C2.23
    Water Absorption (%)MIL-S-13949H 3.7.7
    IPC TM-650 2.6.2.2
    E1/105 + D24/230.02
    Coefficient of ThermalIPC TM-650 2.4.240°C to 100°C
    Expansion (ppm/°C)Mettler 3000
    X AxisThermomechanical25
    Y AxisAnalyzer34
    Z Axis252
    Thermal Conductivity (W/mK)ASTM E-1225100°C0.261
    OutgassingNASA SP-R-0022A125°C, ≤ 10-6 torr
    Total Mass Loss (%)Maximum 1.00%0.01
    Collected VolatileMaximum 0.10%0.01
    Condensable Material (%)
    Water Vapor Regain (%)0.01
    Visible Condensate (±)NO
    Flammability UL File E 80166UL 94 Vertical Burn IPC TM-650 2.3.10C48/23/50, E24/125Meets requirements of UL94-V0

    PCB Construction Details:


    - 2-Layer Rigid PCB:
    The construction of this PCB is a 2-layer rigid PCB, providing a sturdy foundation for your electronic designs.


    - High-Quality Build:
    With a copper layer of 35 μm on both the top and bottom sides and a DiClad 880 thickness of 0.762 mm (30 mil), this PCB ensures exceptional conductivity and durability.


    - Precise Specifications:
    The dimensions of this PCB measure 60 mm x 60 mm (+/- 0.15 mm), offering a compact yet versatile form factor. The minimum trace/space is 5/5 mils, while the minimum hole size is 0.35 mm. The finished board thickness is 0.8 mm, and the finished copper weight stands at 1 oz (1.4 mils) for the outer layers.


    - Reliable Plating and Surface Finish:
    This PCB features 20 μm via plating thickness to ensure robust connections. It also boasts an immersion silver surface finish, providing excellent conductivity and corrosion resistance.


    - Rigorous Quality Assurance:
    Prior to shipment, each PCB undergoes a 100% electrical test to ensure exceptional performance and reliability.


    PCB Material:Woven Fiberglass Reinforced, PTFE-based Composites
    Designation:DiClad 880
    Dielectric constant:2.20 (10 GHz)
    Dissipation factor0.0009 (10 GHz)
    Layer count:Double Sided PCB, Multilayer PCB, Hybrid PCB
    Copper weight:1oz (35µm), 2oz (70µm)
    Dielectric thickness20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
    PCB size:≤400mm X 500mm
    Solder mask:Green, Black, Blue, Yellow, Red etc.
    Surface finish:Immersion gold (ENIG), HASL, Immersion silver, Immersion tin, OSP, ENEPIG, Bare Copper, Pure gold plated etc..

    30mil DiClad 880 High Frequency PCB 2-layer Immesion Silver


    Applications:

    The DiClad 880 PCB is well-suited for a wide range of applications, including:

    - Radar Feed Networks
    - Commercial Phased Array Networks
    - Low Loss Base Station Antennas
    - Guidance Systems
    - Digital Radio Antennas
    - Filters, Couplers, LNAs


    Supply and Standards:

    DiClad 880 PCBs are available worldwide, allowing you to access this advanced technology regardless of your location. This PCB adheres to IPC-Class-2 standard, guaranteeing high-quality manufacturing and consistent performance.


    Enhance your electronic designs to a whole new level with the DiClad 880 PCB, unlocking unrivaled performance, exceptional reliability, and unparalleled design flexibility. Embrace the future of PCB technology and experience the cutting-edge today.
