    30mil Kappa 438 PCB 2-layer Circuit Board Featuring ENEPIG

    Ask Lasest Price
    Brand Name : Bicheng
    Certification : UL, ISO9001, IATF16949
    Price : USD9.99-99.99/PCS
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 8-9 working days
    • Product Details
    • Company Profile

    30mil Kappa 438 PCB 2-layer Circuit Board Featuring ENEPIG

    Introducing the Kappa 438 PCB, a cutting-edge laminated circuit board that combines exceptional high-frequency performance with the convenience of standard epoxy/glass (FR-4) processes. Engineered with a glass reinforced hydrocarbon ceramic system, the Kappa 438 offers superior signal integrity, low loss, and flame retardant properties, making it the ideal choice for a wide range of applications. Let's explore the remarkable features and benefits that set the Kappa 438 PCB apart from the competition.


    This Kappa 438 PCB boasts a range of exceptional features that ensure exceptional performance and reliability in demanding applications. Here's a closer look at its outstanding attributes:


    1. Glass Reinforced Hydrocarbon Thermoset Platform:
    The Kappa 438 PCB is built on a robust glass reinforced hydrocarbon thermoset platform, providing a solid foundation for reliable circuitry.


    2. Tailored Dielectric Constant (Dk):
    With a tailored Dk of 4.38, the Kappa 438 aligns seamlessly with FR-4 industry standards, making it a breeze to convert existing FR-4 designs that require improved electrical performance.


    3. Tight Dk and Thickness Tolerance:
    The Kappa 438 offers tighter Dk and thickness tolerances compared to FR-4, ensuring consistent circuit performance and allowing for precise design execution.


    PropertyTypical Value Kappa 438DirectionUnitsConditionTest Method
    Dielectric Constant, er Design4.38Z-2.5 GHzDifferential Phase Length Method
    Dissipation Factor tan, d0.005Z-10 GHz/23°CIPC-TM-650 2.5.5.5
    Thermal Coefficient of Dielectric Constant e-21-ppm/°C10 GHz (-50 to 150°C)Modified IPC-TM-650 2.5.5.5
    Volume Resistivity2.9 x 109-MΩ•cmCOND AIPC-TM-650 2.5.17.1
    Surface Resistivity6.2 x 107-MΩCOND AIPC-TM-650 2.5.17.1
    Electrical Strength675ZV/mil-IPC-TM-650 2.5.6.2
    Tensile Strength16 12MD CMDkpsi-ASTM D3039/D3039-14
    Flexural Strength25 19MD CMDkpsi-IPC-TM-650 2.4.4
    Dimensional Stability-0.48-0.59MD CMDmm/m-IPC-TM-650 2.4.39a
    Coefficient of Thermal Expansion13Xppm/°C-55 to 288°CIPC-TM-650 2.4.41
    16Y
    42Z
    Thermal Conductivity0.64ZW/(m.K)80°CASTM D5470
    Time to Delamination (T288)>60-minutes288°CIPC-TM-650 2.4.24.1
    Tg>280-°C TMA-IPC-TM-650 2.4.24.3
    Td414-°C-IPC-TM-650 2.3.40
    Moisture Absorption0.07-%24/23IPC-TM-650 2.6.2.1
    Young’s Modulus2264 2098MD CMDkpsi-ASTM D3039/D3039-14
    Flex Modulus2337 2123MD CMDkpsi-IPC-TM-650 2.4.4
    Bow0.03-%-IPC-TM-650 2.4.22C
    Twist0.08-%-IPC-TM-650 2.4.22C
    Copper Peel Strength After Thermal Stress5.8-lbs/in1 oz (35 µm) foilIPC-TM-650 2.4.8
    FlammabilityV-0---UL 94
    Specific Gravity1.99-g/cm3-ASTM D792
    Lead-Free Process CompatibleYes---

    4. Low Z Axis CTE and High Tg:
    Featuring a low Z Axis coefficient of thermal expansion (CTE) of 42 ppm/°C and a high glass transition temperature (Tg) of > 280°C TMA, the Kappa 438 PCB ensures stability and reliability even in challenging temperature environments.


    5. Thermal Coefficient of Dk:
    The Kappa 438 exhibits a thermal coefficient of Dk of -21 ppm/°C during a temperature range of -50°C to 150°C, providing excellent stability and minimizing signal distortion.


    6. UL 94-V0 Flame Retardancy:
    Meeting UL 94-V0 requirements, the Kappa 438 ensures enhanced safety and peace of mind.


    PCB Material:Glass Reinforced Hydrocarbon Ceramic
    Designation:Kappa 438
    Dielectric constant:4.38
    Layer count:Double Layer, Multilayer, Hybrid PCB
    Copper weight:0.5oz (17 µm), 1oz (35µm)
    PCB thickness:20mil (0.508mm), 30mil (0.762mm), 40mil (1.016mm), 60mil (1.524mm)
    PCB size:≤400mm X 500mm
    Solder mask:Green, Black, Blue, Yellow, Red etc.
    Surface finish:Bare copper, HASL, ENIG, OSP etc..

    Unmatched Benefits for Effortless Integration:

    The Kappa 438 PCB offers a range of benefits that make it a standout choice for your circuitry needs. Experience the following advantages:


    1. Compatibility with FR-4 Processes:
    Designed for ease of PCB manufacturing and assembly, the Kappa 438 seamlessly integrates into existing FR-4 workflows, simplifying the adoption process.


    2. Improved Electrical Performance:
    With its tailored Dk, the Kappa 438 allows for smooth conversion of existing FR-4 designs, offering better electrical performance without compromising convenience.


    3. Consistent Circuit Performance:
    Count on the Kappa 438 to deliver consistent and reliable circuit performance, ensuring your designs meet the highest standards.


    4. Design Flexibility and Reliability:
    The Kappa 438 enables improved design flexibility and plated through-hole reliability, empowering you to create innovative and robust circuitry.


    5. Automated Assembly Compatibility:
    The Kappa 438 is fully compatible with automated assembly processes, streamlining production and reducing costs.


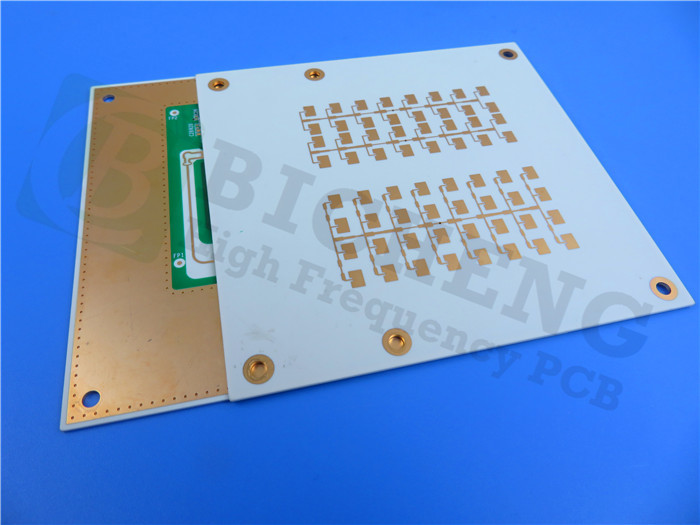

    30mil Kappa 438 PCB 2-layer Circuit Board Featuring ENEPIG


    Precise Construction Details:
    This Kappa 438 PCB features a 2-layer rigid construction, optimized for performance and ease of use. Here are the key construction details:

    - Board dimensions: 76.18mm x 26.4mm, allowing for versatile applications
    - Minimum Trace/Space: 5/5 mils, enabling intricate circuitry design
    - Minimum Hole Size: 0.30mm, facilitating seamless integration of components
    - Finished board thickness: 0.8mm, striking a balance between compactness and durability
    - Finished Cu weight: 1 oz (1.4 mils) outer layers, ensuring optimal conductivity
    - Via plating thickness: 20 μm, guaranteeing reliable electrical connections
    - Surface finish: ENEPIG, providing superior corrosion resistance and solderability
    - Top Silkscreen: No, for a clean and minimalistic appearance
    - Bottom Silkscreen: No, maintaining a sleek and professional aesthetic
    - Top Solder Mask: No, offering flexibility in design and customization
    - Bottom Solder Mask: No, ensuring a streamlined and efficient design
    - 100% Electrical Test: Each board undergoes rigorous testing to ensure flawless functionality prior to shipment.


    Experience Worldwide Availability:
    The Kappa 438 PCB is available worldwide, allowing engineers and designers from all corners of the globe to access its remarkable capabilities and unlock new possibilities in their projects.


    Whether you're working on carrier-grade WiFi systems, small cell networks, vehicle-to-vehicle communication, or IoT applications, the Kappa 438 PCB empowers you to achieve exceptional results. Upgrade your designs today and experience the seamless integration, outstanding performance, and reliability that the Kappa 438 PCB offers.


    30mil Kappa 438 PCB 2-layer Circuit Board Featuring ENEPIG
