Introducing the RT/duroid 6035HTC PCB, a high-performance solution designed for high power RF and microwave applications. Manufactured using Rogers Corporation's advanced high-frequency circuit materials, this PCB offers exceptional reliability and power handling capabilities.

Features:

DK: 3.5 +/- 0.05 at 10 GHz/23°C
Dissipation Factor: 0.0013 at 10 GHz/23°C
Thermal Coefficient of Dielectric Constant: -66 ppm/°C
Moisture Absorption: 0.06%
Thermal Conductivity: 1.44 W/m/K at 80°C
CTE (Coefficient of Thermal Expansion): X-axis: 19 ppm/°C, Y-axis: 19 ppm/°C, Z-axis: 39 ppm/°C

Benefits:

High Thermal Conductivity: Enables efficient heat dissipation and lower operating temperatures for high-power applications.

Excellent High Frequency Performance: Low insertion loss and reliable thermal stability of traces ensure optimal signal integrity.

Superior Power Handling: Designed to handle high power RF and microwave applications with exceptional reliability.

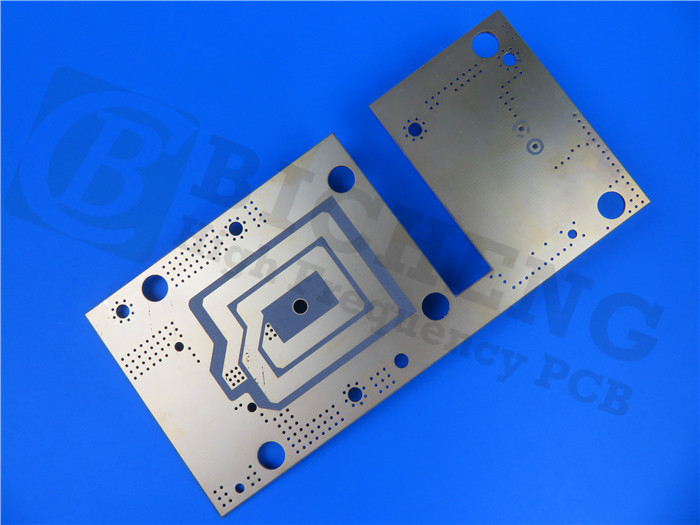

The RT/duroid 6035HTC PCB is a 2-layer rigid PCB with a copper layer thickness of 35 μm on each side and an RT/duroid 6035HTC core thickness of 0.254 mm (10 mils). With board dimensions of 42.91mm x 108.31mm, it provides ample space for your designs while maintaining a compact form factor.

This PCB supports intricate and precise circuit designs, offering a minimum trace/space of 4/5 mils and a minimum hole size of 0.3mm. It has a finished board thickness of 0.3mm and a finished copper weight of 1oz (1.4 mils) on the outer layers, ensuring durability and reliability.

The RT/duroid 6035HTC PCB undergoes rigorous testing, with 100% electrical testing performed prior to shipment, meeting IPC-Class-2 quality standards. It is available worldwide, ensuring easy access to this high-performance solution.

With 35 components, 112 total pads, 74 thru-hole pads, 38 top SMT pads, and 64 vias, the RT/duroid 6035HTC PCB offers versatility and flexibility for your designs. It finds applications in high-power RF and microwave amplifiers, power amplifiers, couplers, filters, combiners, and power dividers.
