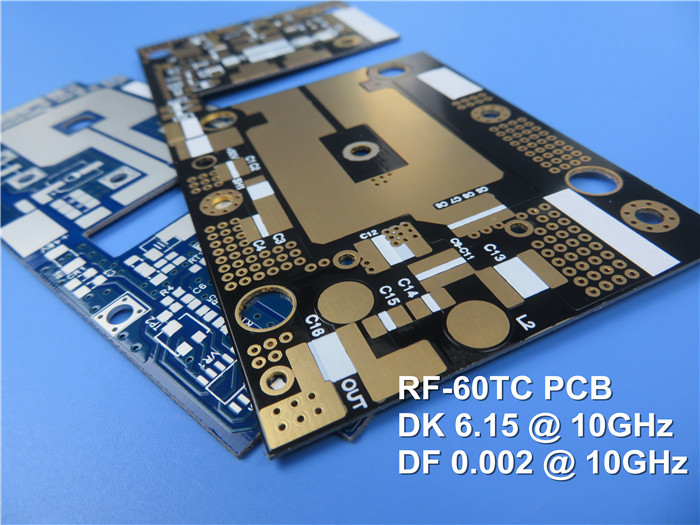

We are excited to introduce our newly shipped 2-layer printed circuit board (PCB) featuring RF-60TC, a high-frequency laminate designed for high-power RF and microwave applications. This advanced material combines ceramic-filled, glass-reinforced PTFE with exceptional thermal conductivity, making it ideal for miniaturized antenna designs and other high-efficiency applications.

Key Features

RF-60TC boasts a dielectric constant (Dk) of 6.15 at 10 GHz and a low dissipation factor of 0.002, providing improved gains and efficiencies in RF circuits. Its high thermal conductivity—1.0 W/m*K for 0.5 oz copper and 1.05 W/m*K for 1 oz—ensures effective heat dissipation, reducing operating temperatures and enhancing the reliability of active components. Additionally, RF-60TC has a low moisture absorption rate of 0.03% and a thermal coefficient of Dk of -3.58 ppm/°C, ensuring stable performance across a wide temperature range.

PCB Specifications

This PCB features a robust stackup consisting of:

- Copper Layer 1: 35 μm
- RF-60TC Core: 0.254 mm (10 mil)
- Copper Layer 2: 35 μm

The overall dimensions of the PCB are 49.44 mm x 36.88 mm ± 0.15 mm, with a finished thickness of 0.37 mm. It supports a minimum trace/space of 4/5 mils and a minimum hole size of 0.25 mm. The PCB is designed without blind vias, featuring a finished copper weight of 1 oz (1.4 mils) on both outer layers.

For surface finish, the PCB uses immersion tin, and it has a white silkscreen on the top side, while the bottom remains clear of silkscreen and solder mask. Each PCB undergoes 100% electrical testing prior to shipment to ensure optimal performance.

Applications

This versatile PCB is suitable for a range of applications, including:

- High Power Amplifiers
- Miniaturized Antennas
- GPS, Patch, RFID Readers
- Filters, Couplers, and Dividers
- Satellite Components

Quality Assurance and Availability

This PCB is produced in accordance with IPC-Class 2 standards and is available for global shipping. The artwork is supplied in Gerber RS-274-X format, ensuring it is compatible with standard PCB design workflows.

Utilizing RF-60TC material allows you to attain superior performance and reliability in high-frequency applications, making it an ideal option for sophisticated RF circuit designs.
