The launch of the TLX-8 PCB marks a significant advancement in high-volume antenna applications, particularly within the realms of RF engineering and microwave technologies. As a senior sales manager, I understand the importance of providing reliable and robust solutions for demanding environments. This article delves into the technical specifications, applications, and advantages of the TLX-8 PCB, highlighting why it stands out in a competitive market.

Introduction to TLX-8

The TLX-8 is constructed from PTFE fiberglass laminates, a material renowned for its excellent performance in a wide range of RF applications. This PCB is particularly advantageous for low layer count microwave designs, which require optimal mechanical reinforcement and stability. The TLX-8 is engineered to endure severe conditions, making it suitable for applications that face high levels of vibration, temperature fluctuations, and radiation exposure.

Key Characteristics of TLX-8

1. Durability in Extreme Conditions: One of the most compelling features of the TLX-8 is its resilience. It is designed to withstand extreme environments, including:

- High Vibration: Ideal for printed wiring boards (PWBs) used in space launch systems, where mechanical creep can lead to failure.

- High Temperatures: Perfect for engine modules that encounter intense heat during operation.

- Radiation Resistance: Compliant with NASA’s standards for low outgassing materials, making it suitable for aerospace applications.

- Maritime Applications: Its robustness against harsh sea environments ensures reliability in warship antennas.

- Temperature Stability: Maintains performance across a wide temperature range, essential for altimeter substrates in flight.

2. Outstanding Electrical Properties: The TLX-8 PCB excels in electrical performance, with:
- Dielectric Constant: Measured at 2.55 ± 0.04 at 10 GHz, ensuring consistent signal integrity.

- Dissipation Factor: A low dissipation factor of 0.0018 minimizes signal loss, enhancing overall system performance.

-Surface and Volume Resistivity: High resistivity values contribute to its effectiveness in various applications.

3. Mechanical and Chemical Stability: The TLX-8 PCB boasts:
- Moisture Absorption: A mere 0.02% moisture absorption rate, enhancing durability and performance longevity.

- Flammability Rating: With a UL 94 V0 rating, it meets stringent fire safety criteria, ensuring it can be deployed in sensitive environments.

PCB Construction and Specifications

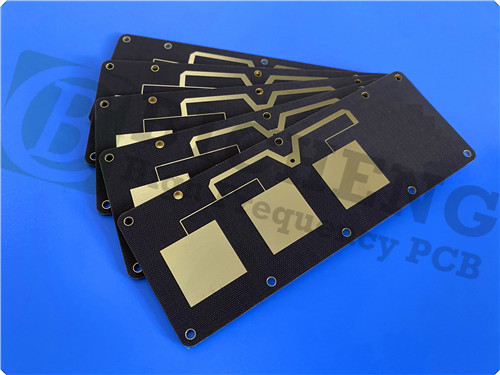

This PCB features a 2-layer rigid stackup, with specific construction details that enhance its performance:

- Layer Composition:
- Copper Layer 1: 35 μm
- Taconic TLX-8 Core: 0.762 mm (30 mil)
- Copper Layer 2: 35 μm

- Board Dimensions: 85mm x 77mm, with a tolerance of +/- 0.15mm.
- Finished Thickness: 0.8mm, with a finished copper weight of 1 oz for the outer layers.

This careful engineering ensures that the TLX-8 PCB meets rigorous demands in various applications, from radar systems to microwave test equipment.

Typical Applications

The TLX-8 PCB is designed for a wide array of applications in the RF and microwave sectors:

- Radar Systems: Its ability to maintain performance in high-vibration and temperature environments makes it ideal for radar technology.

- Mobile Communications: With its low PIM values, the TLX-8 enhances signal reliability in mobile applications.

- Microwave Test Equipment: The stability and performance of this PCB are critical for accurate testing and measurement in microwave technologies.

- Transmission Devices: It excels in couplers, splitters, combiners, amplifiers, and antennas, contributing to efficient signal transmission.

Quality Assurance and Availability

Each PCB adheres to IPC-Class 2 quality standards, ensuring that every unit shipped meets the highest benchmarks for performance and reliability. We utilize a 100% electrical testing prior to shipment, guaranteeing that every PCB functions flawlessly in its intended application.

The TLX-8 is available worldwide, providing engineers and designers with a robust solution for their RF and microwave project challenges.

Conclusion

In conclusion, the TLX-8 PCB represents a cutting-edge solution for professionals in the RF and microwave industries. Its exceptional mechanical, thermal, and electrical properties make it a reliable choice for demanding applications. As we continue to push the boundaries of technology, the TLX-8 stands as a testament to innovation and quality in PCB project.

For more information or to place an order, please contact our sales team at sales10@bichengpcb.com. Let's elevate your projects to new heights with the TLX-8 PCB!
